Search for Python 2

Table of Contents


Release Notes

Version

Date

Notes

1.0.0

04/2025

Initial Release


Overview

Search for Python 2 in scripts, workflows and playbooks

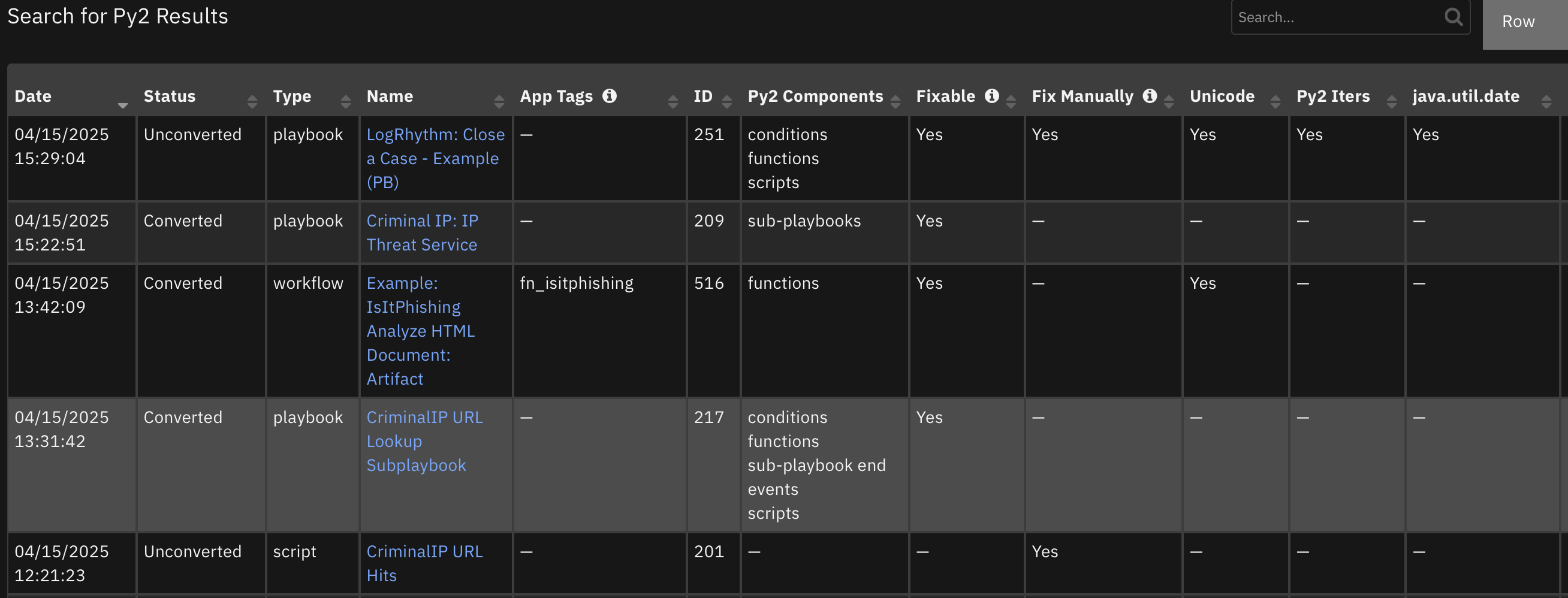

screenshot: main

This app provides visibility to the scripts, workflows and playbooks installed in your SOAR environment which execute on the Python 2 scripting engine. This use of Python 2 needs to be changed as the Python 2 scripting engine will be deprecated. For those identified items, this app provides information about how Python 2 is used, and whether it can be ‘fixable’. This information is presented in an incident datatable. Fixable items can be converted to Python 3 directly from the datatable with the returned results.

This process can be iterative, converting items through the app, manually converting items, and then rerunning the Search for Python 2 playbook to confirm the results of the conversions.

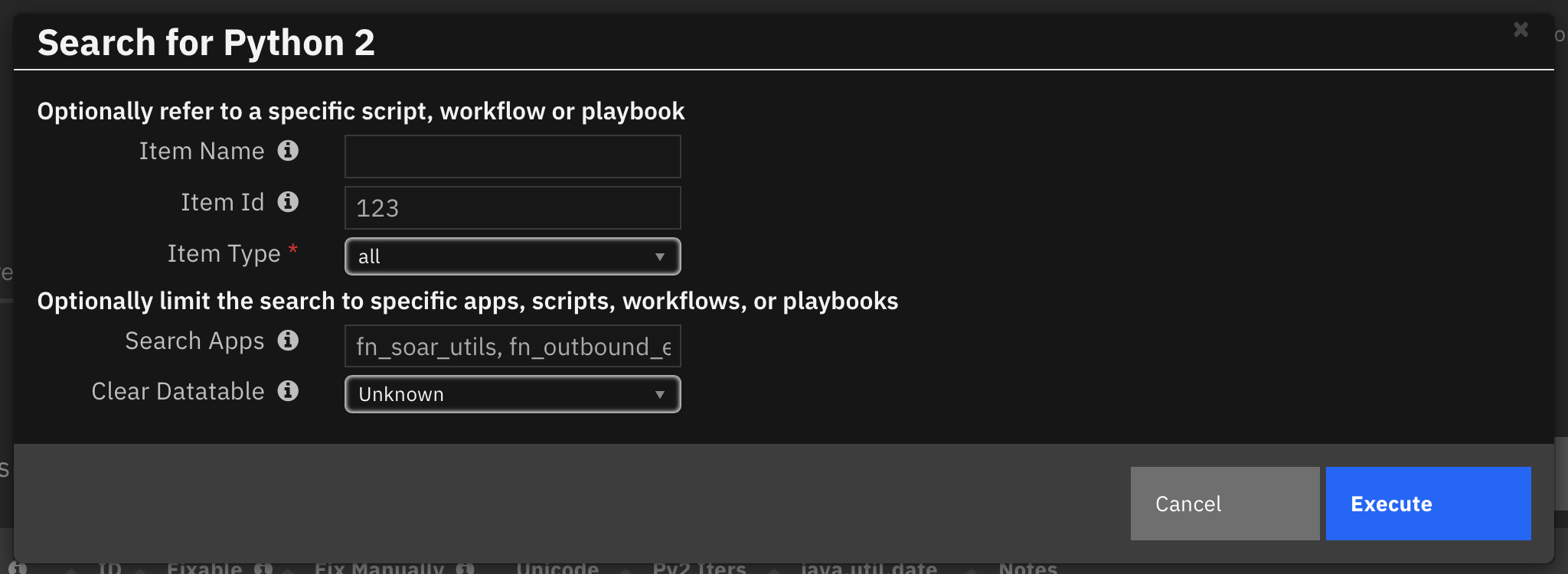

screenshot: main

This app can also be installed in a local environment with Python 3.9 and run from the command line. In this mode, export files (ex. export.res or export.resz) can be used referenced and Python 2 findings reported on the terminal window. See CLI Usage for more information to configure this capability.

% search_for_py2 ~/Downloads/export-ms-20250423122420.resz

Python 2 findings

Id:          201
Type:        script
Name:        CriminalIP URL Hits
App Tags:
Components:
Notes:
Python 3 conversion found significant changes. Please review and convert manually.
-----

Id:          576
Type:        workflow
Name:        Workflow Guardium Insights Block User
App Tags:    fn_guardium_insights_integration
Components:  conditions, functions
Notes:
Python 3 conversion found significant changes. Please review and convert manually.
Unicode strings found ('u' string prefix). This can remain for Python 3, and but cleaner to remove.
-----

Id:          488
Type:        workflow
Name:        Example: SpamHaus: Submit IP Address
App Tags:    fn_spamhaus_query
Components:  functions
Notes:
workflow set to run Python 2. This workflow can be easily changed to use Python 3. Check function input scripts, local scripts, and scripts used in conditions. Mostly likely the only change needed is to convert all language settings to Python 3.
-----

Links:

Key Features

  • Search scripts, workflows and playbooks for use of the Python 2 scripting engine.

  • Selectively search for a particular script, workflow or playbook or just scripts, workflows and/or playbooks.

  • Display the results for easy identification and explained next steps.

  • Convert scripts, workflows and playbooks in place to use Python 3.


Requirements

This app supports the IBM Security QRadar SOAR Platform and the IBM Security QRadar SOAR for IBM Cloud Pak for Security.

SOAR platform

The SOAR platform supports two app deployment mechanisms, Edge Gateway (also known as App Host) and integration server.

If deploying to a SOAR platform with an App Host, the requirements are:

  • SOAR platform >= 51.0.0.0.9339.

  • The app is in a container-based format (available from the AppExchange as a zip file).

If deploying to a SOAR platform with an integration server, the requirements are:

  • SOAR platform >= 51.0.0.0.9339.

  • The app is in the older integration format (available from the AppExchange as a zip file which contains a tar.gz file).

  • Integration server is running resilient-circuits>=51.0.0.

  • If using an API key account, make sure the account provides the following minimum permissions:

    Name

    Permissions

    Org Data

    Read

    Function

    Read

    Script

    Read, Write

    Workflow

    Read, Write, Create

    Playbook

    Read, Write

    Note If running in an Integration Server, Python <= 3.9 should be used.

The following SOAR platform guides provide additional information:

  • Edge Gateway Deployment Guide or App Host Deployment Guide: provides installation, configuration, and troubleshooting information, including proxy server settings.

  • Integration Server Guide: provides installation, configuration, and troubleshooting information, including proxy server settings.

  • System Administrator Guide: provides the procedure to install, configure and deploy apps.

The above guides are available on the IBM Documentation website at ibm.biz/soar-docs. On this web page, select your SOAR platform version. On the follow-on page, you can find the Edge Gateway Deployment Guide, App Host Deployment Guide, or Integration Server Guide by expanding Apps in the Table of Contents pane. The System Administrator Guide is available by expanding System Administrator.

Cloud Pak for Security

If you are deploying to IBM Cloud Pak for Security, the requirements are:

  • IBM Cloud Pak for Security >= 1.10.15.

  • Cloud Pak is configured with an Edge Gateway.

  • The app is in a container-based format (available from the AppExchange as a zip file).

The following Cloud Pak guides provide additional information:

  • Edge Gateway Deployment Guide or App Host Deployment Guide: provides installation, configuration, and troubleshooting information, including proxy server settings. From the Table of Contents, select Case Management and Orchestration & Automation > Orchestration and Automation Apps.

  • System Administrator Guide: provides information to install, configure, and deploy apps. From the IBM Cloud Pak for Security IBM Documentation table of contents, select Case Management and Orchestration & Automation > System administrator.

These guides are available on the IBM Documentation website at ibm.biz/cp4s-docs. From this web page, select your IBM Cloud Pak for Security version. From the version-specific IBM Documentation page, select Case Management and Orchestration & Automation.

Proxy Server

Not applicable.

Python Environment

Python 3.9, 3.11, and 3.12 are officially supported. When deployed as an app, the app runs on Python 3.11. Additional package dependencies may exist for each of these packages:

  • lxml

  • resilient-circuits>=51.0.0

Configuration

Modify your layout to include the ‘Search for Python 2 Results’ datatable. This datatable is used to present the results of the incident action ‘Search for Python 2’. In this example, the datatable is added to the Notes tab.

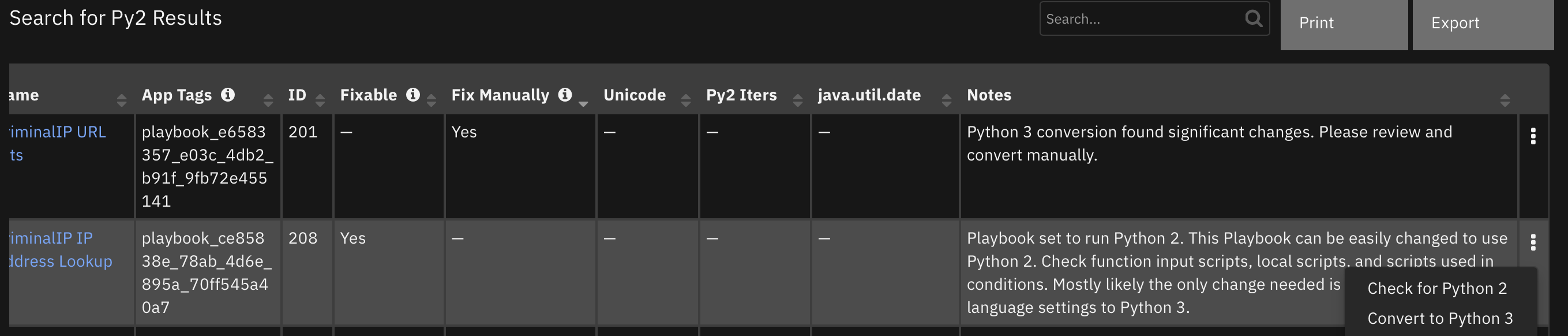

screenshot: main


Installation

Install

  • To install or uninstall an App or Integration on the SOAR platform, see the documentation at ibm.biz/soar-docs.

  • To install or uninstall an App on IBM Cloud Pak for Security, see the documentation at ibm.biz/cp4s-docs and follow the instructions above to navigate to Orchestration and Automation.

App Configuration

No app configuration settings are exposed.

CLI Usage

To use search_for_py2 from a terminal window, follow these steps:

  1. Unzip app-fn_search_for_py2-x.x.x.zip

  2. Run pip install fn_search_for_py2-x.x.x.tar.gz to install the software.

  3. Execute search_for_py2 -h to confirm that the command is available.

 % search_for_py2 -h
usage: search_for_py2 [-h] [-s] [-w] [-p] [-t TAGS] [file]

positional arguments:
  file                  existing customization.py, export.res or export.resz file

options:
  -h, --help            show this help message and exit
  -s, --scripts         Review scripts only
  -w, --workflows       Review workflows only
  -p, --playbooks       Review playbooks only
  -t TAGS, --tags TAGS  comma separated list of app tags to filter

The command is similar to the function exposed in the App. but with two differences:

  • Conversions are not possible.

  • Referencing a specific script, workflow, or playbook by id is not available.

Execution is search_for_py2 /path/to/export.res[z]. Both .res and .resz exports of SOAR layouts with scripts, workflows or playbooks can be used. SOAR integration apps with it’s export.res file can also be referenced. Flags -s, -w, and -p can be used to only search scripts, workflows and playbooks, respectively. Use -t 'tag1,tag2' to only search by app tag.


Function - Convert to Python 3

Convert a script, playbook or playbook to use the SOAR Python 3 scripting engine.

Inputs:

Name

Type

Required

Example

Tooltip

py2_item_id

number

No

42

script, workflow or playbook id

py2_item_type

select

No

script

value: ‘script’, ‘workflow’, or ‘playbook’

Outputs:

NOTE: This example might be in JSON format, but results is a Python Dictionary on the SOAR platform.

results = {
  "content": {
    "script": {
      "actions": [],
      "created_date": 1743719293802,
      "creator_id": "sysadmin@example.com",
      "description": "",
      "enabled": false,
      "id": 5,
      "language": "python3",
      "last_modified_by": "sysadmin@example.com",
      "last_modified_time": 1743719293802,
      "name": "email py2",
      "object_type": "__emailmessage",
      "playbook_handle": null,
      "programmatic_name": "email_py2",
      "script_text": "incident.addNote(emailmessage.sender)\n",
      "tags": [],
      "uuid": "****-31fb-4d9a-a3b3-95c6c9c9f148"
    }
  },
  "inputs": {
    "py2_item_id": 5,
    "py2_item_type": "script"
  },
  "metrics": {
    "execution_time_ms": 798,
    "host": "my.app.host",
    "package": "fn-search-for-py2",
    "package_version": "1.0.0",
    "timestamp": "2025-04-04 12:25:47",
    "version": "1.0"
  },
  "raw": null,
  "reason": null,
  "success": true,
  "version": 2.0
}

Example Function Input Script:

inputs.py2_item_id = row.item_id
inputs.py2_item_type = row.item_type

Example Function Post Process Script:

from datetime import datetime
results = playbook.functions.results.convert_results

if results.success:
  now = int(datetime.now().timestamp()*1000)
  row["date"] = now
  row["status"] = "Converted"
else:
  incident.addNote(f"Python 2 conversion failed for '{row.item_name}': {results.reason}")


Function - Search for Python 2

Search for scripts, workflows and playbooks which are set to use Python 2. Python 2 can be converted to Python 3 if the item is mark in the datatable as ‘Easily Convertible’.

Inputs:

Name

Type

Required

Example

Tooltip

py2_item_name

str

No

_

Name of script, workflow or playbook to search

py2_item_id

number

No

-

script, workflow or playbook id

py2_item_type

select

No

workflow

values: ‘script’, ‘workflow’ or ‘playbook’. If unset with an item_name or item_id, all scripts, workflows and playbooks are search.

py2_search_tags

text

No

fn_soar_utils, fn_outbound_email

comma separated list of apps to search.

py2_inc_id

int

Yes

8900

Incident id.

py2_clear_datatable

boolean

No

No

If Yes, the results datatable is cleared of previous results.

Outputs:

NOTE: This example might be in JSON format, but results is a Python Dictionary on the SOAR platform.

results = {
  "content": {
    "playbook": {
      "4": {
        "attributes": [
          "PY2_CONVERTIBLE"
        ],
        "display_name": "Py2 3Conditions",
        "name": "py2_3conditions",
        "tags": []
      }
    },
    "script": {
      "5": {
        "attributes": [
          "PY2_CONVERTIBLE",
          "PY2_UNICODE"
        ],
        "display_name": null,
        "name": "email py2",
        "tags": []
      },
      "6": {
        "attributes": [
          "PY2_CONVERTIBLE"
        ],
        "display_name": null,
        "name": "py2_script",
        "tags": []
      }
    },
    "workflow": {
      "5": {
        "attributes": [
          "PY2_CONVERTIBLE"
        ],
        "display_name": null,
        "name": "py2 workflow",
        "tags": []
      }
    }
  },
  "inputs": {
    "py2_item_id": null,
    "py2_item_type": null,
    "py2_playbooks_only": null,
    "py2_scripts_only": null,
    "py2_search_tags": null,
    "py2_workflows_only": null
  },
  "metrics": {
    "execution_time_ms": 3758,
    "host": "my.app.host",
    "package": "fn-search-for-py2",
    "package_version": "1.0.0",
    "timestamp": "2025-04-04 12:25:17",
    "version": "1.0"
  },
  "raw": null,
  "reason": null,
  "success": true,
  "version": 2.0
}

Example Function Input Script:

inputs.py2_item_id = playbook.inputs.item_id
inputs.py2_item_name = playbook.inputs.item_name
inputs.py2_item_type = playbook.inputs.item_type
inputs.py2_playbooks_only = playbook.inputs.only_playbooks
inputs.py2_scripts_only = playbook.inputs.only_scripts
inputs.py2_workflows_only = playbook.inputs.only_workflows
inputs.py2_search_tags = playbook.inputs.search_tags

Example Function Post Process Script:

from datetime import datetime

results = playbook.functions.results.search_for_py2_results

PY2_LOOKUP = {
  "PY2_UNCONVERTIBLE": "Python 3 conversion found significant changes. Please review and convert manually.",
  "PY2_CONVERTIBLE": "{item_type} set to run Python 2. This {item_type} can be easily changed to use Python 2. Check function input scripts, local scripts, and scripts used in conditions. Mostly likely the only change needed is to convert all language settings to Python 3.",
  "PY2_ITERS": "Python 2 iters found. Convert to use .items(), .keys(), and .values() as appropriate",
  "PY2_JAVA_UTIL_DATE": "'import java.util.Date' found. Change to 'from datetime import datetime' and datetime functions such as 'datetime.now()'.",
  "PY2_UNICODE": "Unicode strings found ('u' string prefix). This can remain for Python 3, and but cleaner to remove."
}

def display_db_row(db, now, item_type, item_id, item_name, tags, attributes):
  row = incident.addRow(db)
  row["date"] = now
  row["status"] = "Unconverted"
  row["item_type"] = make_url(item_type, item_id, item_name)
  row["item_id"] = int(item_id)
  row["item_name"] = item_name
  if tags:
    row["app_tags"] = ", ".join([tag.get("tag_handle")  for tag in tags])
  msg = []
  for attr in attributes:
    row[attr.lower()] = "Yes"
    msg.append(PY2_LOOKUP.get(attr, "").format(item_type=item_type.title()))
  row["notes"] = "\n".join(msg)

def display_db(db="search_for_py2_results"):
  now = int(datetime.now().timestamp()*1000)
  found = False
  for item_type in ["script", "playbook", "workflow"]:
    for item_id, item_info in results.content.get(item_type, []).items():
      found = True
      display_db_row(db,
                     now,
                     item_type,
                     item_id,
                     item_info.get("display_name") if item_info.get("display_name") else item_info.get("name"),
                     item_info.get("tags", []),
                     item_info.get("attributes", []))

  if not found:
    incident.addNote("No Python 2 scripts, workflows or playbooks found")

def make_url(item_type, item_id, item_name):
  if item_type == "script":
    return f"<a target='_blank' href='#customize?tab=scripts&script={item_id}'>{item_name}</a>"

  if item_type == "workflow":
    return f"<a target='_blank' href='#customize?tab=workflows&workflow={item_id}'>{item_name}</a>"

  if item_type == "playbook":
    return f"<a target='_blank' href='#playbooks/designer/{item_id}'>{item_name}</a>"

  return item_name

# S T A R T
if results.success:
    display_db()
else:
    incident.addNote(f"Search for PY2 failed: {results.reason}")


Playbooks

screenshot: main

Playbook Name

Description

Activation Type

Object

Status

Condition

Convert to Python 3

Convert Scripts, Workflows and Playbooks to Python 3 if no blockers exist. Blockers are ‘Fix Manual’, ‘Python 2 iterators’, and ‘import java.util.Date’

Manual

search_for_py2_results

enabled

search_for_py2_results.py2_convertible equals Yes

Search for Python 2

Search for Python 2 in scripts, workflows and playbooks. Python 2 will be removed in an upcoming version of SOAR.

Manual

incident

enabled

-

Check for Python 2

Search for Python 2 in scripts, workflows and playbooks. Python 2 will be removed in an upcoming version of SOAR.

Manual

search_for_py2_results

enabled

-


Data Table - Search for Py2 Results

API Name:

search_for_py2_results

Columns:

Column Name

API Access Name

Type

Tooltip

Date

date

datetimepicker

Current date of search results.

Status

status

text

‘Unconverted’ or ‘Converted’

Type

item_type

text

‘script’, ‘workflow’ or ‘playbook’

Name

item_name

textarea

link within SOAR to the named item.

App Tags

app_tags

text

Name(s) of apps which this item is related.

ID

item_id

number

-

Py2 Components

py2_components

textarea

Parts of workflows or playbooks with Python 2. ‘conditions’, ‘scripts’, ‘sub-playbook end event’, ‘functions’

Fixable

py2_convertible

select

If ‘Yes’, use the ‘Convert to Py3’ action to convert.

Fix Manually

py2_unconvertible

select

Identifies issues with item which needs manual conversion.

Py2 Iters

py2_iters

select

Identifies the use of Python 2 iteration which needs manual conversion.

java.util.Date

py2_java_util_date

select

Identifies use of java.util.Date package which needs manual conversion.

Unicode

py2_unicode

select

Identifies if unicode syntax is found. Ex. x = u’a’.

Notes

notes

textarea

Notes on found issues with remediation steps.


Notes

  • A scan of everything will report a playbook and its sub components, such as sub-playbooks and local scripts in separate rows. Converting a playbook will also update the scripts and sub-playbooks. But those datatable rows aren’t updated to show that they were converted. Running ‘Search for Python 2’ again will then create new datatable rows of Python 2 items remaining. But anything converted will not be part of this report.

  • Some scripts will be marked as ‘Fix Manually’, but are, in fact, easily convertible. For instance, a script with one line: incident.addNote("something") will get flagged for Manual Conversion. This is because our Python conversion package doesn’t know about the incident object which is embedded into the SOAR scripting engine.

  • Playbooks have scripts in the following locations:

    • function input fields

    • conditions

    • local and external scripts

    • pre-processing scripts to call sub-playbooks

  • Sub-playbooks have scripts the following locations:

    • all the same locations as playbooks

    • the end decision point

  • Workflows have scripts in:

    • function pre-process and post-processing scripts

    • conditions. Conditions have two places which represent python scripting logic. See the Advanced Scripting Options.

  • For MSSP configurations, it is not possible to run these functions to both ‘Search for Python 2’ and ‘Convert to Python 2’ from a child org. The best alternative is to export the scripts, workflows and playbooks from the parent org and use the CLI command tool to scan the export.resz file on a local filesystem. Then apply changes within the parent org before pushing to associated child orgs.

See CLI Usage.

Troubleshooting & Support

Refer to the documentation listed in the Requirements section for troubleshooting information.

For Support

This is a IBM Community provided app. Please search the Community ibm.biz/soarcommunity for assistance.
