AWS GuardDuty

Table of Contents


Release Notes

Version

Date

Notes

2.0.0

07/2025

Added CRUD Functionality for ThreatIntelSets and IPSets

1.1.0

04/2024

Add Playbooks

1.0.0

03/2021

Initial Release


AWS GuardDuty App 2.0.0 Changes

In v2.0.0, there are 2 new capabilities for Guardduty that have been added. For the trusted IP addresses we have IPSets and for the malicious IP addresses we have ThreatIntelSets. This will enhance with the existing capabilities and make it easier to specify which IP addresses to generate findings for.

There have been 10 new playbooks introduced which basically deals with create, read, update and delete methods for these sets on AWS Guardduty from SOAR. When upgrading to the newer version, nothing is changed from the previous methods for IPSets and ThreatIntelSets.

AWS GuardDuty App 1.1.0 Changes

In v1.1.0, the existing rules and workflows have been replaced with playbooks. This change is made to support the ongoing, newer capabilities of playbooks. Each playbook has the same functionality as the previous, corresponding rule/workflow.

If upgrading from a previous release, you’ll noticed that the previous release’s rules/workflows remain in place. Both sets of rules and playbooks are active. For manual actions, playbooks will have the same name as it’s corresponding rule, but with “(PB)” added at the end. For automatic actions, the playbooks will be disabled by default.

You can continue to use the rules/workflows. But migrating to playbooks will provide greater functionality along with future app enhancements and bug fixes.

Overview

Amazon AWS GuardDuty Integration for SOAR.

screenshot: main

Amazon AWS GuardDuty is a continuous security monitoring service that identifies unexpected and potentially unauthorized and malicious activity within an AWS environment. GuardDuty informs the user of the status of their AWS environment by producing security findings that can be viewed in the GuardDuty console. A finding is a potential security issue discovered by GuardDuty.

The Amazon AWS GuardDuty Integration for SOAR allows you to process and respond to GuardDuty findings within the IBM SOAR Platform.

Key Features

The GuardDuty Integration provides the following functionality:

  • A poller which gathers current findings from GuardDuty and escalates to the SOAR platform as incidents.

  • A function to archive a GuardDuty finding when the corresponding SOAR incident is closed.

  • A function to refresh a SOAR incident with the latest information from the corresponding GuardDuty finding.

  • Close SOAR incidents if the corresponding GuardDuty findings are archived.

  • Archive GuardDuty findings if the corresponding SOAR incidents are closed.

  • Trigger a refresh for a SOAR incident if the corresponding GuardDuty finding gets updated.

  • A refresh of SOAR incidents can be executed manually.

Note: AWS Region should always be cross-checked before working with ThreatIntelSets/IPSets Note: ThreatIntelSets/IPSets playbook actions are only available on AWS incidents in SOAR created by the poller

ThreatIntelSets: Manage known malicious IP addresses within your AWS environment. You can upload up to 6 threat IP lists per Region.

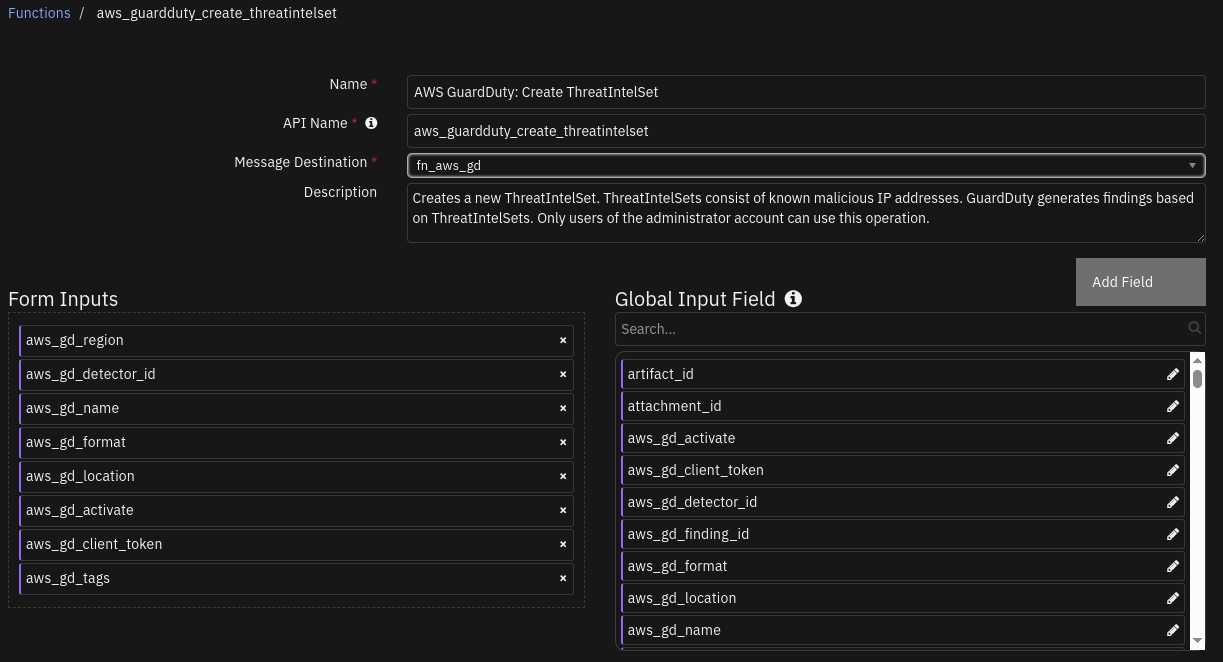

  • Create a new threatintelset on AWS GuardDuty from SOAR and activate the set to generate findings.

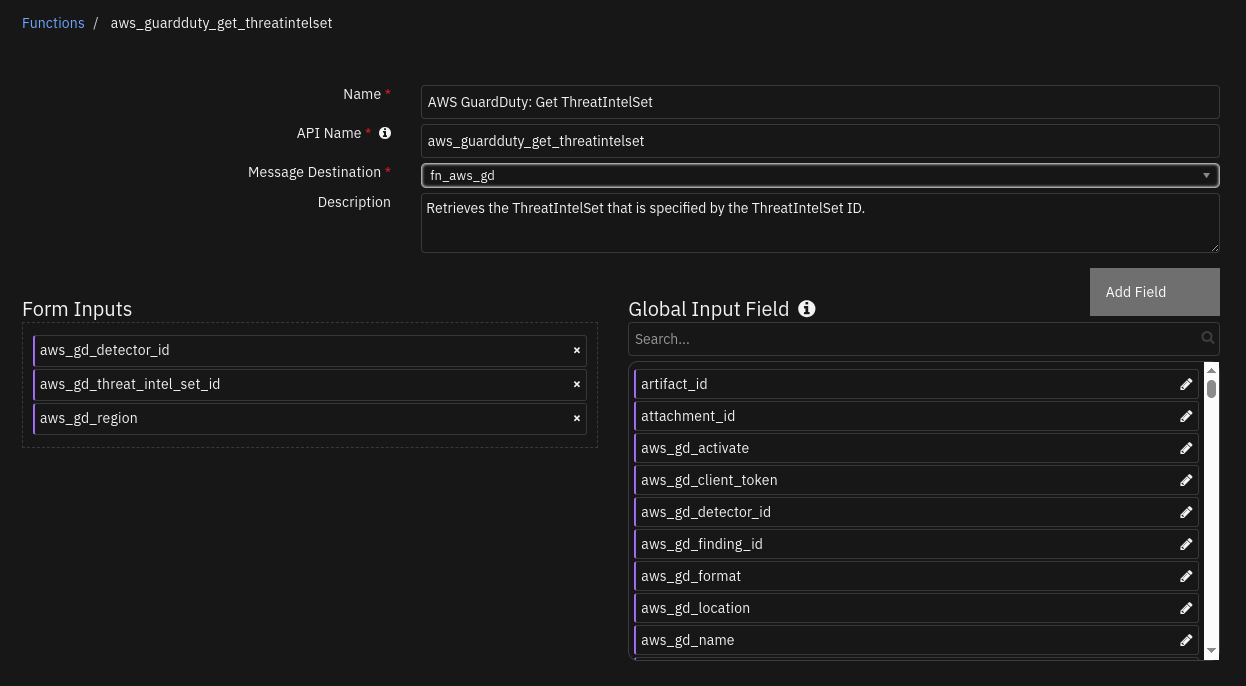

  • Get the details of a threatintelset on AWS GuardDuty by specifying a threatintelsetid.

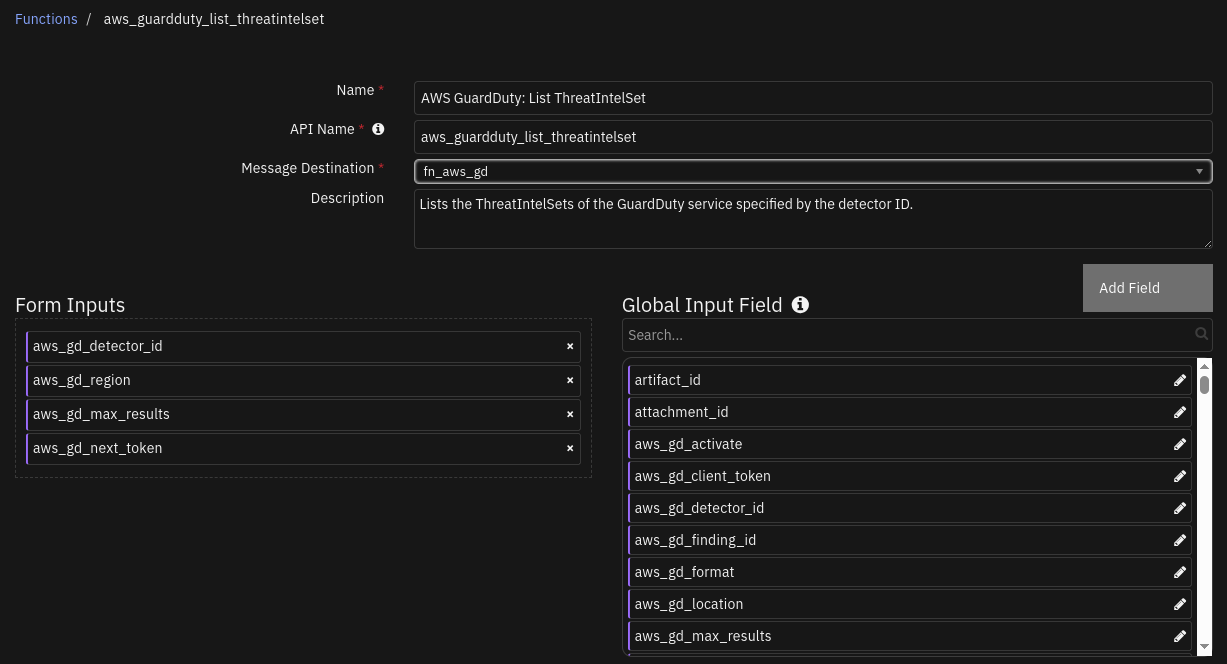

  • List all the threatintelsets on AWS GuardDuty for a given detector_id and region.

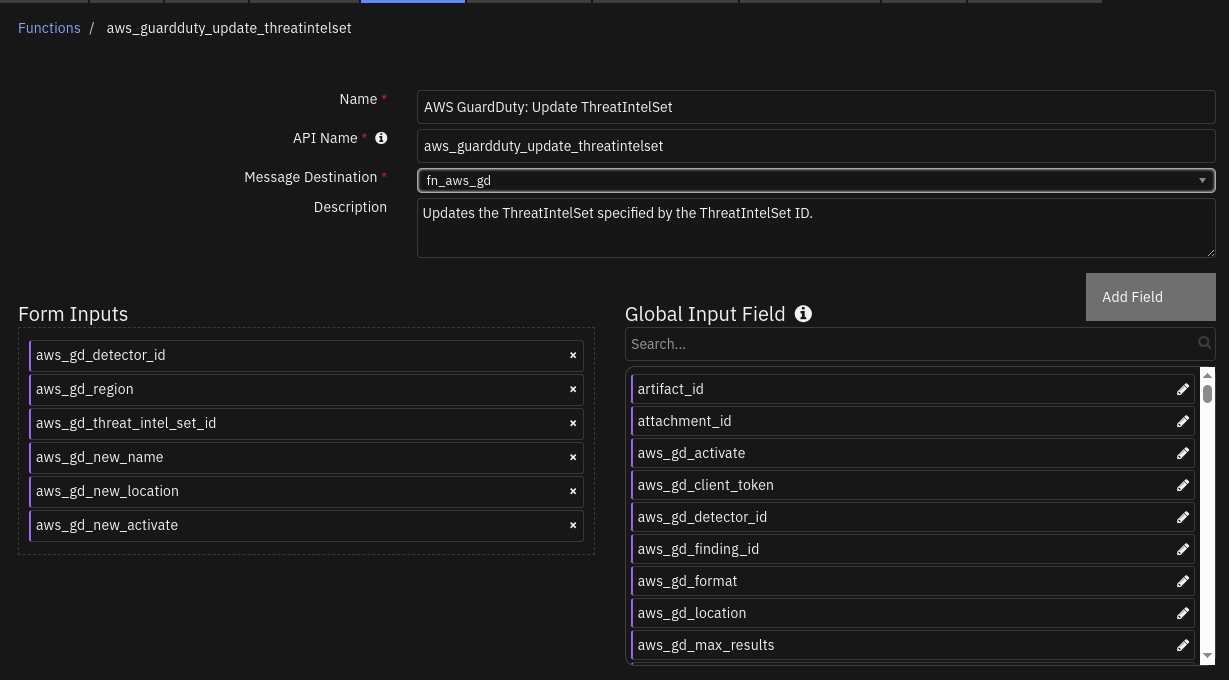

  • Update an existing threatintelset on AWS GuardDuty by specifying the threatintelsetid.

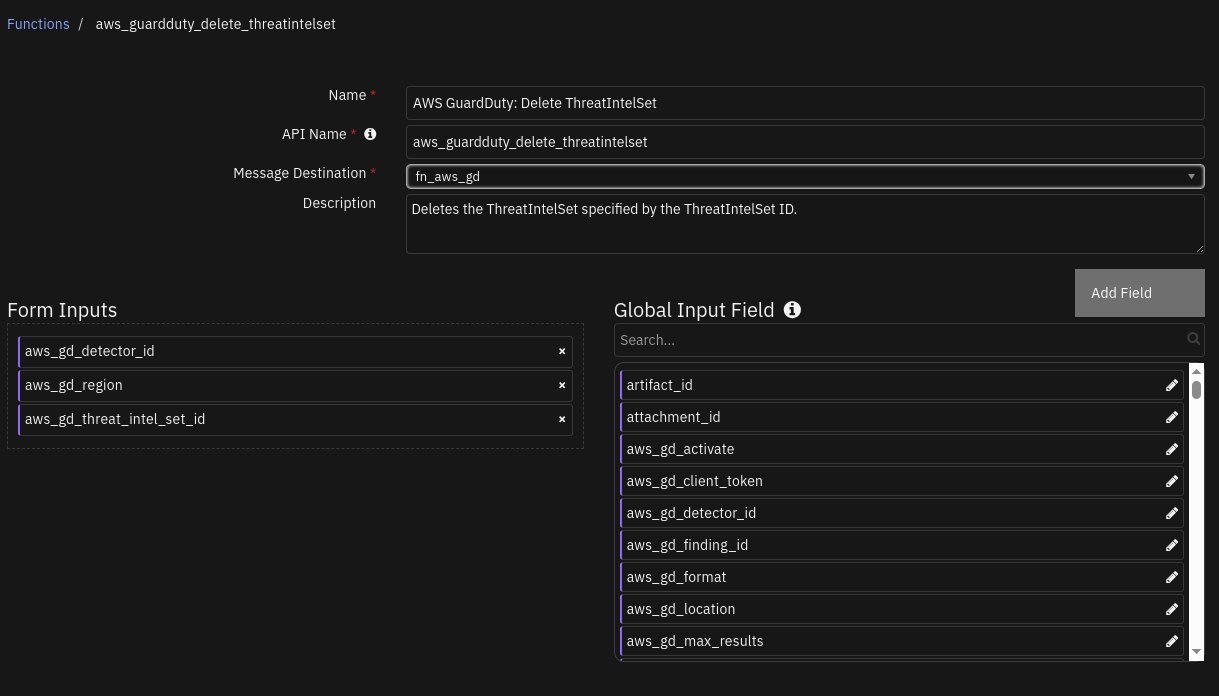

  • Delete the threatintelset on AWS GuardDuty environment from SOAR.

IPSets: Manage IP addresses that you trust for secure communication within your AWS environment. You can have only one trusted IP list per Region.

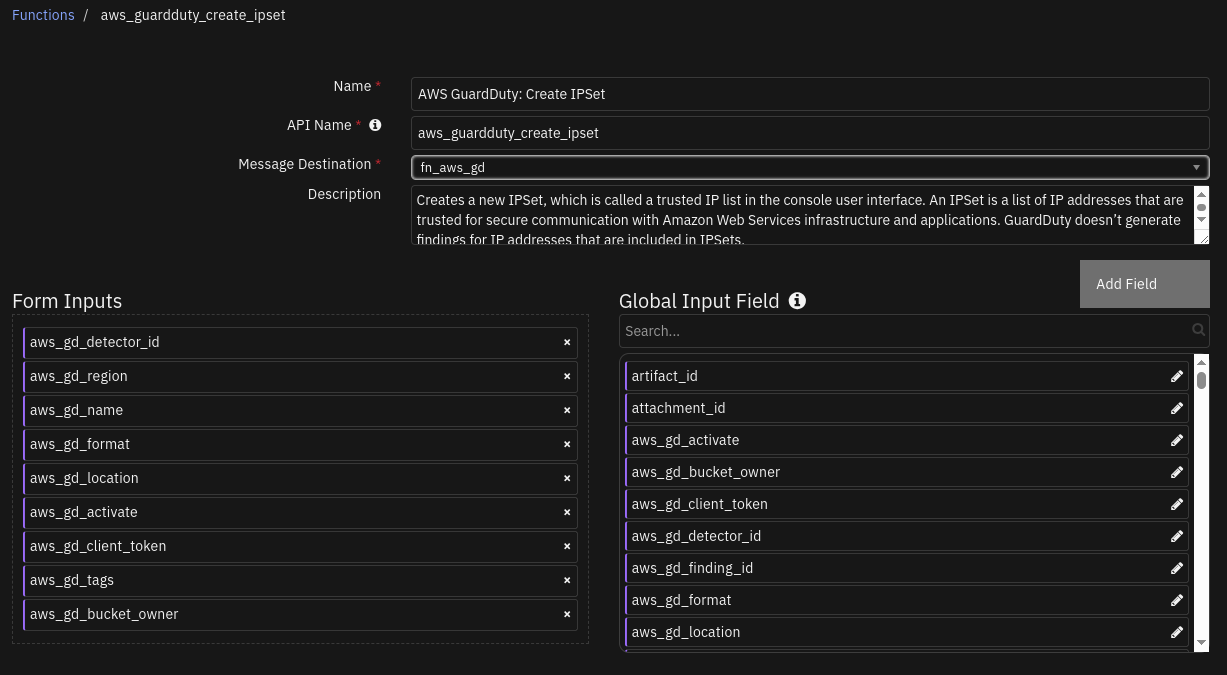

  • Create a new ipset on AWS GuardDuty from SOAR and activate the set to skip generating findings for the trusted IP’s.

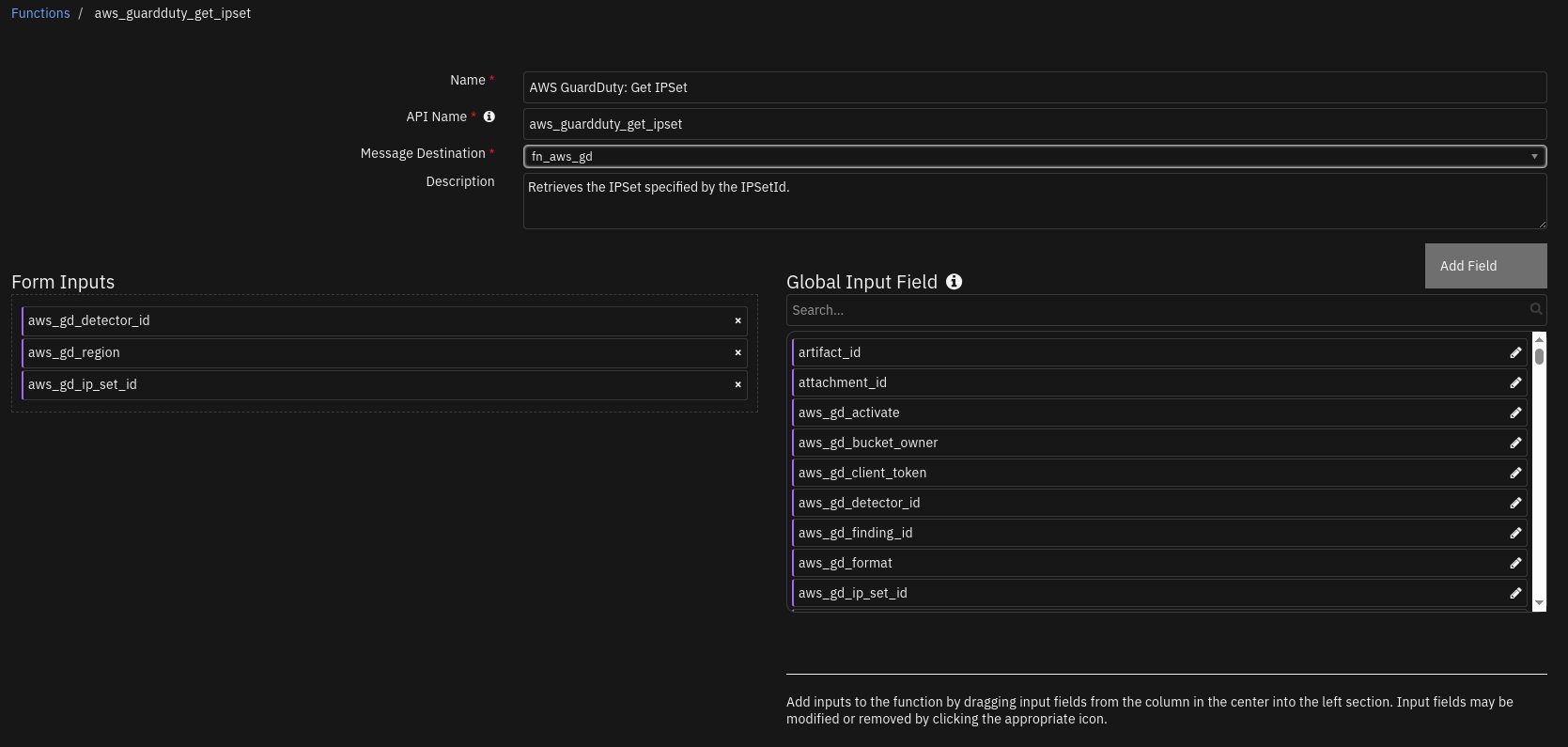

  • Get the details of an ipset on AWS GuardDuty by specifying an ipsetid.

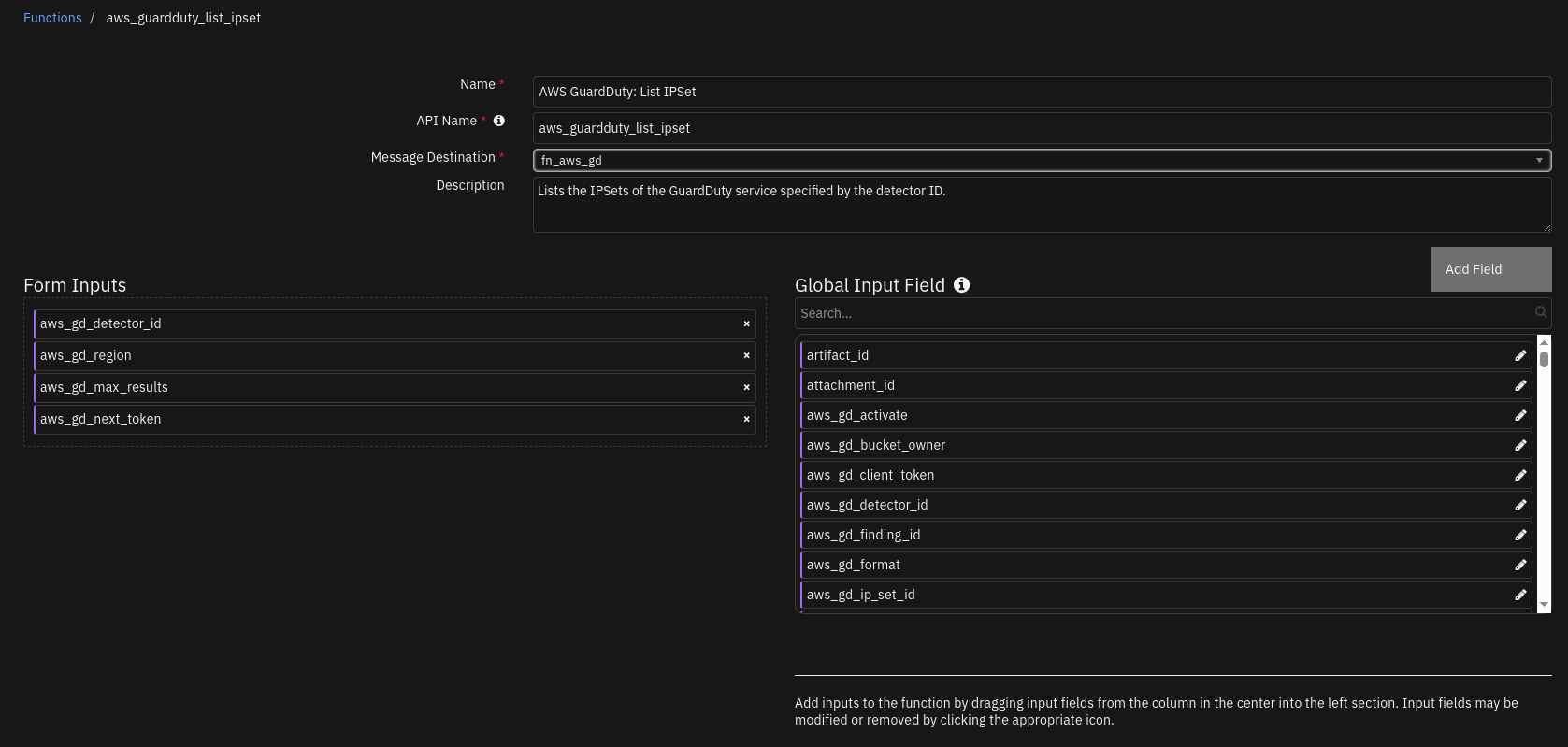

  • List all the ipsets on AWS GuardDuty for a given detector_id and region.

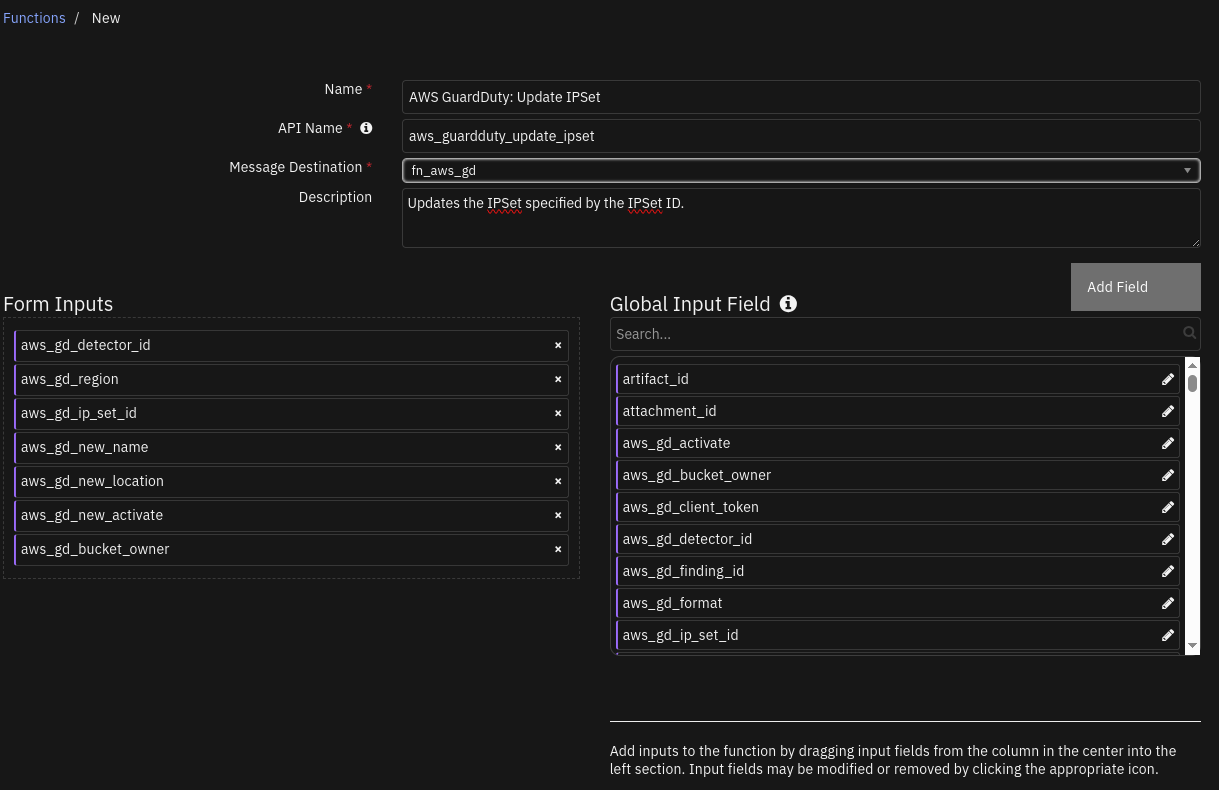

  • Update an existing ipset on AWS GuardDuty by specifying the ipsetid.

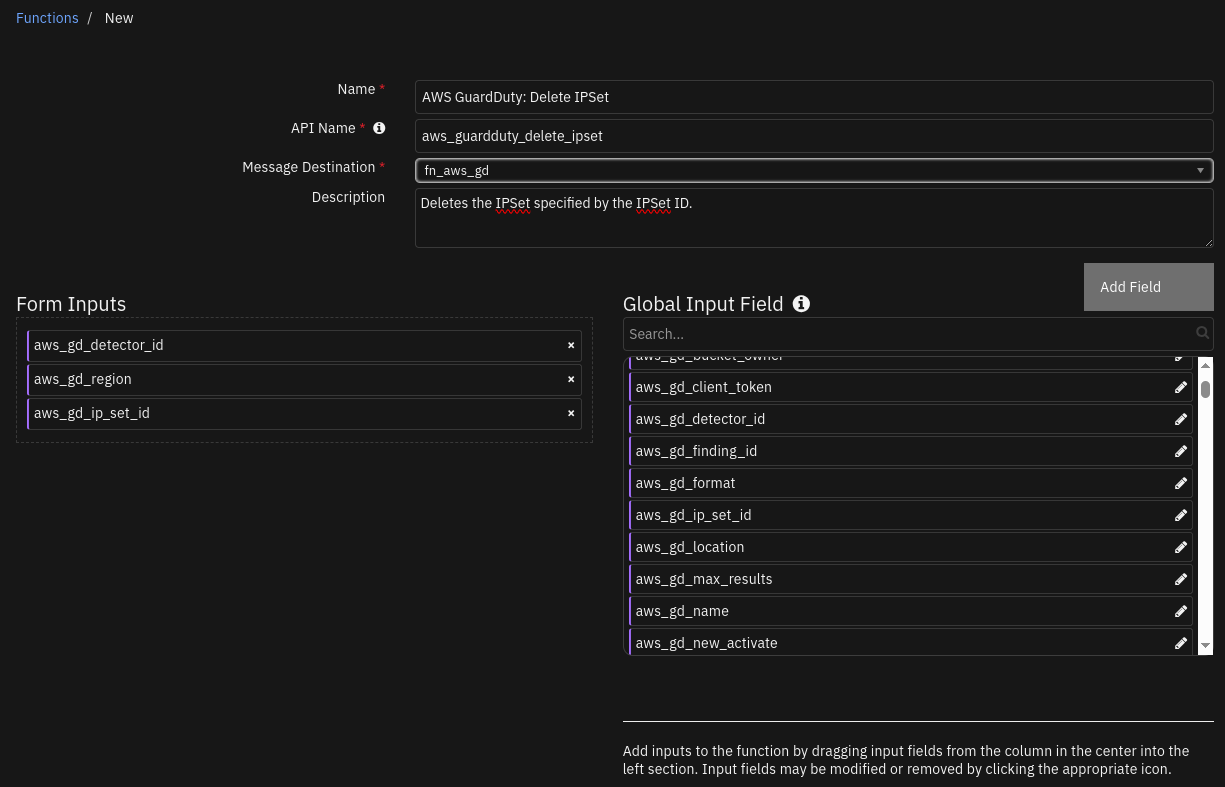

  • Delete the ipset on AWS GuardDuty environment from SOAR.


Requirements

This app supports the IBM Security QRadar SOAR Platform and the IBM Security QRadar SOAR for IBM Cloud Pak for Security.

SOAR platform

The SOAR platform supports two app deployment mechanisms, Edge Gateway (also known as App Host) and integration server.

If deploying to a SOAR platform with an App Host, the requirements are:

  • SOAR platform >= 51.0.0.

  • The app is in a container-based format (available from the AppExchange as a zip file).

If deploying to a SOAR platform with an integration server, the requirements are:

  • SOAR platform >= 51.0.0.

  • The app is in the older integration format (available from the AppExchange as a zip file which contains a tar.gz file).

  • Integration server is running resilient_circuits>=51.0.0.

  • If using an API key account, make sure the account provides the following minimum permissions:

    Name

    Permissions

    Org Data

    Read

    Function

    Read

    incident

    create

    all_incidents

    Read

The following SOAR platform guides provide additional information:

  • Edge Gateway Deployment Guide or App Host Deployment Guide: provides installation, configuration, and troubleshooting information, including proxy server settings.

  • Integration Server Guide: provides installation, configuration, and troubleshooting information, including proxy server settings.

  • System Administrator Guide: provides the procedure to install, configure and deploy apps.

The above guides are available on the IBM Documentation website at ibm.biz/soar-docs. On this web page, select your SOAR platform version. On the follow-on page, you can find the Edge Gateway Deployment Guide, App Host Deployment Guide, or Integration Server Guide by expanding Apps in the Table of Contents pane. The System Administrator Guide is available by expanding System Administrator.

Cloud Pak for Security

If you are deploying to IBM Cloud Pak for Security, the requirements are:

  • IBM Cloud Pak for Security >= 1.10.15.

  • Cloud Pak is configured with an Edge Gateway.

  • The app is in a container-based format (available from the AppExchange as a zip file).

The following Cloud Pak guides provide additional information:

  • Edge Gateway Deployment Guide or App Host Deployment Guide: provides installation, configuration, and troubleshooting information, including proxy server settings. From the Table of Contents, select Case Management and Orchestration & Automation > Orchestration and Automation Apps.

  • System Administrator Guide: provides information to install, configure, and deploy apps. From the IBM Cloud Pak for Security IBM Documentation table of contents, select Case Management and Orchestration & Automation > System administrator.

These guides are available on the IBM Documentation website at ibm.biz/cp4s-docs. From this web page, select your IBM Cloud Pak for Security version. From the version-specific IBM Documentation page, select Case Management and Orchestration & Automation.

Proxy Server

The app does support a proxy server.

Python Environment

Python 3.9 and Python 3.11 are supported. Additional package dependencies may exist for each of these packages:

  • boto3>=1.16.19

  • resilient_circuits>=51.0.0


Installation

Install

  • To install or uninstall an App or Integration on the SOAR platform, see the documentation at ibm.biz/soar-docs.

  • To install or uninstall an App on IBM Cloud Pak for Security, see the documentation at ibm.biz/cp4s-docs and follow the instructions above to navigate to Orchestration and Automation.

App Configuration

The following table provides the settings you need to configure the app. These settings are made in the app.config file. See the documentation discussed in the Requirements section for the procedure.

Config

Required

Example

Description

aws_gd_access_key_id

Yes

ABCD1EFGHI2JK3L4MNOP

AWS access key id of user with programmatic (API) access to AWS GuardDuty services for an AWS account. Note: User must have sufficent permissions to be able to manage GuardDuty resources for the AWS account.

aws_gd_secret_access_key

Yes

aBcdeFGH/iJkl1MNo2P3Q4rs5tuV6wXYZAbc+Def

AWS secret access key used for programmatic (API) access to AWS services.

aws_gd_master_region

Yes

us-west-1

Default or master region for the integration.

aws_gd_regions

Yes

"^us.*"

Filter by GuardDuty region names. Can be a string or regular expression.

aws_gd_regions_interval

Yes

60

Interval to refresh regions information (in minutes).

aws_gd_polling_interval

Yes

15

Interval to poll GuardDuty for findings (in minutes).

aws_gd_severity_threshold

No

7

Severity threshold (int) to use in criterion to filter findings .

aws_gd_lookback_interval

No

60

How long, (in minutes) to check back for previous findings at startup. Filter to process only more recent findings.

aws_gd_close_incident_template

No

``

User defined JSON template file to use for closing SOAR incidents.

http_proxy

No

http://proxy:80

Optional setting for an http proxy if required.

https_proxy

No

https://proxy:443

Optional setting for an https proxy if required.


Poller - AWS GuardDuty: Escalate Findings

The GuardDuty integration poller starts querying GuardDuty for findings as soon as the app begins running.

The poller provide the following functionality.

  • For any new findings discovered, creates a matching incident in the SOAR platform.

  • Enhances the incidents by adding artifacts, data tables and a note with data from the findings. The note includes the JSON content of the finding.

  • Can be configured to filter the findings, which are escalated to the SOAR incidents.

  • Closes SOAR incidents if the corresponding GuardDuty findings are archived.

  • Archives GuardDuty findings if the corresponding SOAR incidents are closed.

  • Triggers a refresh of GuardDuty information for a SOAR incident if the corresponding GuardDuty finding is updated.

The following screenshot shows examples of SOAR incidents created by the poller from GuardDuty findings:

screenshot: fn-aws-guardduty-incidents

The following screenshot shows an example of a SOAR incident Details tab created by the poller:

screenshot: fn-aws-guardduty-incident-details

The following screenshot shows an example of GuardDuty finding custom properties in the Details tab of a SOAR incident created by the poller:

screenshot: fn-aws-guardduty-incident-properties

The following screenshot shows examples of artifacts added to a SOAR incident created by the poller:

screenshot: fn-aws-guardduty-incident-artifacts

The following screenshot shows an example of a note added to a SOAR incident created by the poller:

screenshot: fn-aws-guardduty-incident-note

Note: See the data tables section for examples of data tables added by the poller.


Function - AWS GuardDuty: Archive finding

SOAR Function to archive an AWS GuardDuty finding when the corresponding incident is closed.

screenshot: fn-aws-guardduty-archive-finding

Inputs:

Name

Type

Required

Example

Tooltip

aws_gd_detector_id

text

No

-

AWS GuardDuty detector ID.

aws_gd_finding_id

text

No

-

AWS GuardDuty finding ID.

aws_gd_region

text

No

-

AWS GuardDuty region.

Outputs:

NOTE: This example might be in JSON format, but results is a Python Dictionary on the SOAR platform.

results = {
  "content": {
    "status": "ok"
  },
  "inputs": {
    "aws_gd_detector_id": "48bb********************b7ccbc82",
    "aws_gd_finding_id": "xxxxyyyyzzzz",
    "aws_gd_region": "us-east-1"
  },
  "metrics": {
    "execution_time_ms": 2058,
    "host": "IBM-dummy-MacBookPro.local",
    "package": "fn-aws-guardduty",
    "package_version": "1.1.0",
    "timestamp": "2024-04-11 14:09:19",
    "version": "1.0"
  },
  "raw": "{\"status\": \"ok\"}",
  "reason": null,
  "success": true,
  "version": "1.0"
}

Example Function Input Script:

inputs.aws_gd_region = incident.properties.aws_guardduty_region
inputs.aws_gd_detector_id = incident.properties.aws_guardduty_detector_id
inputs.aws_gd_finding_id = incident.properties.aws_guardduty_finding_id

Example Function Post Process Script:

##  wf_aws_guardduty_refresh_finding ##
# Example result:
"""
Good
====
Result: {'version': '1.0', 'success': True, 'reason': None,
         'content': {'status': 'ok'},
         'raw': '{"status": "ok"}',
         'inputs': {'aws_gd_finding_id':      'c2bb95a17*******96c58f8a1689785',
         'aws_gd_region': 'us-east-2',
                    'aws_gd_detector_id': '32b7017d*******22abc4e07c3fdded'
                    },
         'metrics': {'version': '1.0', 'package': 'fn-aws-guardduty', 'package_version': '1.0.0',
         'host': 'myhost.ibm.com', 'execution_time_ms': 1310, 'timestamp': '2021-01-28 11:31:30'
        }
}
Error:
Result: {'version': '1.0', 'success': True, 'reason': None,
         'content': {'status': 'error',
                     'msg': 'An error occurred (BadRequestException) when calling the ArchiveFindings operation:
                     The request is rejected because the input detectorId is not owned by the current account.'},
                     'raw': '<content_as_string>',
         'inputs': {'aws_gd_finding_id': 'c2bb95a17b879bffc96c58f8a1689784', 'aws_gd_region': 'us-east-2',
                    'aws_gd_detector_id': '32b7017*******22abc4e07c3fdfff'
                    },
         'metrics': {'version': '1.0', 'package': 'fn-aws-guardduty', 'package_version': '1.0.0',
         'host': 'myhost.ibm.com', 'execution_time_ms': 1446, 'timestamp': '2021-01-28 11:34:53'
         }
}
"""
#  Globals
FN_NAME = "func_aws_guardduty_archive_finding"
WF_NAME = "Example: AWS GuardDuty: Archive Finding"
# SOAR artifact names to api names.
# Processing
# Processing
CONTENT = playbook.functions.results.output
INPUTS = playbook.functions.results.inputs
QUERY_EXECUTION_DATE = playbook.functions.results.output["metrics"]["timestamp"]


# Processing

def main():
    note_text = ''
    if CONTENT:
        if CONTENT["status"] == "ok":
            note_text = "AWS IAM Integration: Workflow <b>{0}</b>: The finding with id <b>{1}</b> and detector id " \
                        "<b>{2}</b> in region <b>{3}</b> was successfully archived for SOAR function <b>{4}</b>"\
                .format(WF_NAME, INPUTS["aws_gd_finding_id"], INPUTS["aws_gd_detector_id"], INPUTS["aws_gd_region"], FN_NAME)
            # Update archived property.
            incident.properties.aws_guardduty_archived = "True"


        elif CONTENT["status"] == "error":
            note_text = "AWS IAM Integration: Workflow <b>{0}</b>: The finding with id <b>{1}</b> and detector id " \
                        "<b>{2}</b> in region <b>{3}</b> failed archive with error <b>{4}</b> for SOAR function <b>{5}</b>"\
                .format(WF_NAME, INPUTS["aws_gd_finding_id"], INPUTS["aws_gd_detector_id"], INPUTS["aws_gd_region"],
                        CONTENT["msg"], FN_NAME)

        else:
            note_text = "AWS IAM Integration: Workflow <b>{0}</b>: The finding with id <b>{1}</b> and detector id " \
                        "<b>{2}</b> in region <b>{3}</b> got unexpected status <b>{4}</b> for SOAR function <b>{5}</b>" \
                .format(WF_NAME, INPUTS["aws_gd_finding_id"], INPUTS["aws_gd_detector_id"], CONTENT["status"], INPUTS["aws_gd_region"],
                        FN_NAME)

    else:
        note_text += "AWS IAM Integration: Workflow <b>{0}</b>: There was no result returned for SOAR function <b>{0}</b>"\
            .format(WF_NAME, FN_NAME)

    incident.addNote(helper.createRichText(note_text))

if __name__ == "__main__":
    main()


Function - AWS GuardDuty: Refresh Finding

SOAR Function to refresh AWS GuardDuty finding details in an incident.

screenshot: fn-aws-guardduty-refresh-finding

Inputs:

Name

Type

Required

Example

Tooltip

aws_gd_detector_id

text

No

-

AWS GuardDuty detector ID.

aws_gd_finding_id

text

No

-

AWS GuardDuty finding ID.

aws_gd_region

text

No

-

AWS GuardDuty region.

incident_id

number

No

-

SOAR incident ID.

Outputs:

NOTE: This example might be in JSON format, but results is a Python Dictionary on the SOAR platform.

results = {
  "content": {
    "data_tables": {
      "gd_access_key_details": [
        {
          "cells": {
            "access_key_id": {
              "value": "xxxxyyyy"
            },
            "principal_id": {
              "value": "xxxxyyyy"
            },
            "query_execution_date": {
              "value": "2024-04-11 14:08:54"
            },
            "user_name": {
              "value": "dummy"
            },
            "user_type": {
              "value": "IAMUser"
            }
          }
        }
      ],
      "gd_action_details": [
        {
          "cells": {
            "action_api": {
              "value": "ListFindings"
            },
            "action_type": {
              "value": "AWS_API_CALL"
            },
            "actor_caller_type": {
              "value": "Remote IP"
            },
            "asn": {
              "value": "17390"
            },
            "asn_org": {
              "value": "CIO-ORGANIZATION"
            },
            "city_name": {
              "value": "Singapore"
            },
            "country_name": {
              "value": "Singapore"
            },
            "event_first_seen": {
              "value": "2024-04-11T05:26:01.000Z"
            },
            "event_last_seen": {
              "value": "2024-04-11T05:32:48.000Z"
            },
            "isp": {
              "value": "IBM Corporation"
            },
            "org": {
              "value": "IBM Corporation"
            },
            "query_execution_date": {
              "value": "2024-04-11 14:08:54"
            },
            "remote_ip": {
              "value": "129.41.56.2"
            },
            "service_name": {
              "value": "guardduty.amazonaws.com"
            }
          }
        }
      ],
      "gd_finding_overview": [
        {
          "cells": {
            "account_id": {
              "value": "xxxxyyyyzzzz"
            },
            "count": {
              "value": "1"
            },
            "created_at": {
              "value": "2024-04-11T05:47:16.625Z"
            },
            "query_execution_date": {
              "value": "2024-04-11 14:08:54"
            },
            "region": {
              "value": "us-east-1"
            },
            "severity": {
              "value": "2"
            },
            "updated_at": {
              "value": "2024-04-11T05:47:16.625Z"
            }
          }
        }
      ],
      "gd_instance_details": [],
      "gd_resource_affected": [
        {
          "cells": {
            "query_execution_date": {
              "value": "2024-04-11 14:08:54"
            },
            "resource_role": {
              "value": "TARGET"
            },
            "resource_type": {
              "value": "AccessKey"
            }
          }
        }
      ],
      "gd_s3_bucket_details": []
    },
    "finding": {
      "AccountId": "xxxxyyyyzzzz",
      "Arn": "arn:aws:guardduty:us-east-1:xxxxyyyyzzzz:detector/48bb********************b7ccbc82/finding/xxxxyyyyzzzz",
      "CreatedAt": "2024-04-11T05:47:16.625Z",
      "Description": "APIs commonly used in Discovery tactics were invoked by user IAMUser : dummy under unusual circumstances. Such activity is not typically seen from this user.",
      "Id": "xxxxyyyyzzzz",
      "Partition": "aws",
      "Region": "us-east-1",
      "Resource": {
        "AccessKeyDetails": {
          "AccessKeyId": "xxxxyyyy",
          "PrincipalId": "xxxxyyyy",
          "UserName": "dummy",
          "UserType": "IAMUser"
        },
        "ResourceType": "AccessKey"
      },
      "SchemaVersion": "2.0",
      "Service": {
        "Action": {
          "ActionType": "AWS_API_CALL",
          "AwsApiCallAction": {
            "AffectedResources": {},
            "Api": "ListFindings",
            "CallerType": "Remote IP",
            "RemoteIpDetails": {
              "City": {
                "CityName": "Singapore"
              },
              "Country": {
                "CountryName": "Singapore"
              },
              "GeoLocation": {
                "Lat": 1.2868,
                "Lon": 103.8503
              },
              "IpAddressV4": "129.41.56.2",
              "Organization": {
                "Asn": "17390",
                "AsnOrg": "CIO-ORGANIZATION",
                "Isp": "IBM Corporation",
                "Org": "IBM Corporation"
              }
            },
            "ServiceName": "guardduty.amazonaws.com"
          }
        },
        "AdditionalInfo": {
          "Type": "default",
          "Value":{"String encoded json. Review full payload in payload_samples folder"},
        "Archived": false,
        "Count": 1,
        "DetectorId": "48bb********************b7ccbc82",
        "EventFirstSeen": "2024-04-11T05:26:01.000Z",
        "EventLastSeen": "2024-04-11T05:32:48.000Z",
        "ResourceRole": "TARGET",
        "ServiceName": "guardduty"
      },
      "Severity": 2,
      "Title": "The user IAMUser : dummy is anomalously invoking APIs commonly used in Discovery tactics.",
      "Type": "Discovery:IAMUser/AnomalousBehavior",
      "UpdatedAt": "2024-04-11T05:47:16.625Z"
    },
    "payload": {
      "artifacts": [],
      "comments": [],
      "description": {
        "content": "APIs commonly used in Discovery tactics were invoked by user IAMUser : dummy under unusual circumstances. Such activity is not typically seen from this user.",
        "format": "text"
      },
      "discovered_date": "2024-04-11T05:47:16.625Z",
      "name": "AWS GuardDuty: The user IAMUser : dummy is anomalously invoking APIs commonly used in Discovery tactics.",
      "properties": {
        "aws_guardduty_archived": "False",
        "aws_guardduty_count": "1",
        "aws_guardduty_detector_id": "48bbf98*******215c7a02b7ccbc82",
        "aws_guardduty_finding_arn": "arn:aws:guardduty:us-east-1:xxxxyyyyzzzz:detector/48bb********************b7ccbc82/finding/xxxxyyyyzzzz",
        "aws_guardduty_finding_id": "xxxxyyyyzzzz",
        "aws_guardduty_finding_type": "Discovery:IAMUser/AnomalousBehavior",
        "aws_guardduty_finding_updated_at": "2024-04-11T05:47:16.625Z",
        "aws_guardduty_region": "us-east-1",
        "aws_guardduty_resource_type": "AccessKey",
        "aws_guardduty_severity": "2"
      },
      "severity_code": "Low"
    },
    "region": "us-east-1",
    "timestamp": "2024-04-11 14:08:54"
  },
  "inputs": {
    "aws_gd_detector_id": "48bb********************b7ccbc82",
    "aws_gd_finding_id": "xxxxyyyyzzzz",
    "aws_gd_region": "us-east-1",
    "incident_id": 2114
  },
  "metrics": {
    "execution_time_ms": 1530,
    "host": "IBM-dummy-MacBookPro.local",
    "package": "fn-aws-guardduty",
    "package_version": "1.1.0",
    "timestamp": "2024-04-11 14:08:54",
    "version": "1.0"
  },
  "raw": "String encoded json. Review full payload in payload_samples folder",
    "reason": null,
  "success": true,
  "version": "1.0"
  }
}

Example Function Input Script:

inputs.aws_gd_region = incident.properties.aws_guardduty_region
inputs.aws_gd_detector_id = incident.properties.aws_guardduty_detector_id
inputs.aws_gd_finding_id = incident.properties.aws_guardduty_finding_id
inputs.incident_id = incident.id

Example Function Post Process Script:

##  wf_aws_guardduty_refresh_finding ##
# Example result:
"""
Result: { 'version': '1.0',
          'success': True,
          'reason': None,
          'content': {'payload': {'name': 'AWS GuardDuty: API GeneratedFindingAPIName was invoked from an IP address on a custom threat list.',
                                  'description': {'format': 'text', 'content': 'An API was used to access a bucket from an IP address on a custom threat list.'},
                                  'discovered_date': '2020-11-25T13:46:37.960Z',
                                  'severity_code': 'Low',
                                  'properties': {'aws_guardduty_finding_id': '60baffd3f9042e38640f2300d5c5a631',
                                                'aws_guardduty_finding_arn': 'arn:aws:guardduty:us-west-2:xxxxyyyyzzzz:detector/f2baedb0*******929e15f56da6a/finding/60baffd3f9042e38640f2300d5c5a631',
                                                'aws_guardduty_finding_type': 'UnauthorizedAccess:S3/MaliciousIPCaller.Custom',
                                                'aws_guardduty_finding_updated_at': '2020-11-26T15:18:12.620Z', 'aws_guardduty_region': 'us-west-2',
                                                'aws_guardduty_resource_type': 'S3Bucket', 'aws_guardduty_count': 4,
                                                'aws_guardduty_detector_id': 'f2baedb*******2fc929e15f56da6a'},
                                  'artifacts': [],
                                  'comments': [{'text': {'format': 'text', 'content': "AWS GuardDuty finding Payload:\n<FINDING_PAYLOAD_AS_STRING>"}}]

                                },
                      "data_tables": {"gd_action_details": [{"cells": {"action_type": {"value": "AWS_API_CALL"},
                                                            "action_api": {"value": "GeneratedFindingAPIName"},
                                                            "event_first_seen": {"value": "2020-11-25T13:46:37.960Z"},
                                                            "event_last_seen": {"value": "2020-11-26T15:18:12.620Z"},
                                                            "actor_caller_type": {"value": "Remote IP"}, "city_name": {"value": "GeneratedFindingCityName"}, "country_name": {"value": "GeneratedFindingCountryName"}, "asn": {"value": "-1"}, "asn_org": {"value": "GeneratedFindingASNOrg"}, "isp": {"value": "GeneratedFindingISP"}, "org": {"value": "GeneratedFindingORG"}, "action_service_name": {"value": "GeneratedFindingAPIServiceName"}, "remote_ip": {"value": "198.51.100.0"}}}],
                                    "gd_resource_affected": [{"cells": {"resource_type": {"value": "S3Bucket"}, "instance_id": {"value": "i-99999999"}, "instance_type": {"value": "m3.xlarge"}, "instance_state": {"value": "running"}, "resource_role": {"value": "TARGET"}, "instance_private_ip": {"value": "10.0.0.1"}, "instance_private_dns": {"value": "GeneratedFindingPrivateName"}, "instance_public_ip": {"value": "198.51.100.0"}, "instance_public_dns": {"value": "GeneratedFindingPublicDNSName"}, "s3bucket_name": {"value": "bucketName"}, "s3bucket_owner": {"value": "CanonicalId of Owner"}}}]

                      }}',
            'inputs': {'incident_id': 2168, 'aws_gd_finding_id': '60baffd3f9042e38640f2300d5c5a631',
                      'aws_gd_region': 'us-west-2', 'aws_gd_detector_id': 'f2baedb0ac74f8f42fc929e15f56da6a'},
            'metrics': {'version': '1.0', 'package': 'fn-aws-guardduty', 'package_version': '1.0.0',
                        'host': 'Johnp-MacBook-Pro-2.galway.ie.ibm.com', 'execution_time_ms': 10739,
                        'timestamp': '2021-01-18 16:51:10'}
}
"""
#  Globals
# List of fields in datatable for wf_aws_guardduty_refresh_finding script
DATA_TABLES = ["gd_action_details", "gd_resource_affected"]
FN_NAME = "func_aws_guardduty_refresh_finding"
WF_NAME = "Example: AWS GuardDuty: Refresh Finding"
# SOAR artifact names to api names.
ARTIFACT_API_TO_TYPE = {
    "aws_iam_access_key_id": "AWS IAM Access Key ID",
    "aws_iam_user_name": "AWS IAM User Name",
    "aws_s3_bucket_name": "AWS S3 Bucket Name",
    "IP Address": "IP Address",
    "DNS Name": "DNS Name",
    "Port": "Port"
}

CONTENT = playbook.functions.results.output
QUERY_EXECUTION_DATE = playbook.functions.results.output["metrics"]["timestamp"]
if CONTENT:
    FINDING = CONTENT.finding
    PAYLOAD = CONTENT.payload
    ARTIFACTS = CONTENT.artifacts
    DATA_TABLES = CONTENT.data_tables

# Processing

def main():
    note_text = ''
    if CONTENT:
        note_text = "AWS GuardDuty Integration: Workflow <b>{0}</b>: Finding data returned for SOAR function " \
                    "<b>{2}</b>".format(WF_NAME, len(CONTENT), FN_NAME)

        update_fields()
        update_datatables()
        if ARTIFACTS:
            add_artifacts()
    else:
        note_text = "AWS GuardDuty Integration: Workflow <b>{0}</b>: No finding data returned for SOAR function " \
                    "<b>{2}</b>".format(WF_NAME, len(CONTENT), FN_NAME)

    incident.addNote(helper.createRichText(note_text))

def update_fields():
    incident.severity_code = PAYLOAD["severity_code"]
    incident.properties.aws_guardduty_finding_updated_at = PAYLOAD["properties"]["aws_guardduty_finding_updated_at"]
    incident.properties.aws_guardduty_count = str(PAYLOAD["properties"]["aws_guardduty_count"])
    incident.properties.aws_guardduty_archived = str(PAYLOAD["properties"]["aws_guardduty_archived"])
    incident.properties.aws_guardduty_severity = str(PAYLOAD["properties"]["aws_guardduty_severity"])

def update_datatables():
    for data_table in DATA_TABLES:
        for row in DATA_TABLES[data_table]:
            newrow = incident.addRow(data_table)
            newrow.query_execution_date = QUERY_EXECUTION_DATE
            data_table_fields = row["cells"]
            for f, v_info in data_table_fields.items():
                newrow[f] = v_info.value


def add_artifacts():
    for artifact in ARTIFACTS:
        artifact_type = ARTIFACT_API_TO_TYPE[artifact["type"]["name"]]
        artifact_value = artifact["value"]
        description = artifact["description"]["content"]
        incident.addArtifact(artifact_type, artifact_value, description)


if __name__ == "__main__":
    main()


Function - AWS GuardDuty: Create ThreatIntelSet

SOAR function to create a new threat intel set on AWS GuardDuty.

screenshot: fn-aws-guardduty-create-threatintelset

Inputs:

Name

Type

Required

Example

Tooltip

aws_gd_detector_id

text

Yes

-

AWS GuardDuty detector ID.

aws_gd_region

text

Yes

-

AWS GuardDuty region.

aws_gd_name

text

Yes

-

AWS GuardDuty threatintelset name that we specify.

aws_gd_format

text

Yes

TXT, STIX, OTX_CSV, ALIEN_VAULT, PROOF_POINT, FIRE_EYE

AWS GuardDuty file format for the threatintelset.

aws_gd_location

text

Yes

s3://example_bucket/example.txt

AWS GuardDuty threatintelset file location. URI can be retrieved from AWS S3 bucket.

aws_gd_activate

boolean

Yes

-

AWS GuardDuty threatintelset activation. True indicates that the AWS GuardDuty can use this threatintelset in AWS GuardDuty findings.

aws_gd_client_token

text

No

-

AWS GuardDuty threatintelset idempotency token. (Autopopulated when not specified)

aws_gd_tags

text

No

-

AWS GuardDuty tags. These are key-value pairs used to categorize and manage the threatintelset lists. It is also a form of metadata which gives more insights about the resource.

Outputs:

NOTE: This example might be in JSON format, but results is a Python Dictionary on the SOAR platform.

results = {
  "version": 2,
  "success": "True",
  "reason": "None",
  "content": {
    "ResponseMetadata": {
      "RequestId": "df0f48de-de02-4d20-b88b-5234c715a14a",
      "HTTPStatusCode": 200,
      "HTTPHeaders": {
        "date": "Fri, 18 Jul 2025 13:27:40 GMT",
        "content-type": "application/json",
        "content-length": "55",
        "connection": "***",
        "x-amzn-requestid": "df0f48de-de02-4d20-b88b-5234c715a14a",
        "access-control-allow-origin": "*",
        "access-control-allow-headers": "Content-Type,X-Amz-Date,Authorization,X-Api-Key,X-Amz-Security-Token,X-Amz-Content-Sha256,X-Amz-User-Agent,*,Date,X-Amz-Target,x-amzn-platform-id,x-amzn-trace-id",
        "x-amz-apigw-id": "N6DIBG_7IAMEogw=",
        "access-control-expose-headers": "x-amzn-ErrorType,x-amzn-requestid,x-amzn-errormessage,x-amzn-trace-id,x-amz-apigw-id,Date",
        "x-amzn-trace-id": "Root=1-687a4bcc-149a260c62ef8c641a7c8df5;Parent=3a406d782efd26b9;Sampled=0;Lineage=1:045398e1:0",
        "access-control-max-age": "86400"
      },
      "RetryAttempts": 0
    },
    "ThreatIntelSetId": "114da827a1d0442b96f7039275b321e8",
    "status": "ok"
  },
  "raw": "None",
  "inputs": {
    "aws_gd_format": "TXT",
    "aws_gd_name": "Test 18",
    "aws_gd_region": "us-east-1",
    "aws_gd_location": "s3://test-threat-intel-set/malicious_ip.txt",
    "aws_gd_client_token": "***",
    "aws_gd_tags": "Severity:LOW, Mitigation:Possible",
    "aws_gd_activate": "False",
    "aws_gd_detector_id": "48bb********************b7ccbc82"
  },
  "metrics": {
    "version": "1.0",
    "package": "fn-aws-guardduty",
    "package_version": "2.0.0",
    "host": "localhost",
    "execution_time_ms": 1303,
    "timestamp": "2025-07-18 14:27:41"
  }
}

Example Function Input Script:

inputs.aws_gd_region = incident.properties.aws_guardduty_region
inputs.aws_gd_detector_id = incident.properties.aws_guardduty_detector_id
inputs.aws_gd_name = playbook.inputs.aws_gd_name
inputs.aws_gd_activate = playbook.inputs.aws_gd_activate
inputs.aws_gd_format = playbook.inputs.aws_gd_format
inputs.aws_gd_location = playbook.inputs.aws_gd_location
inputs.aws_gd_client_token = playbook.inputs.aws_gd_client_token
inputs.aws_gd_tags = playbook.inputs.aws_gd_tags

Example Function Post Process Script:

#This is a Post-Processing Script for AWS GuardDuty Create ThreatIntelset

FN_NAME = "aws_guardduty_create_threatintelset"
WF_NAME = "AWS GuardDuty: Create ThreatIntelSet"

results = playbook.functions.results.response_output

note_text = f"Action ran for AWS Region: <b>{incident.properties.aws_guardduty_region}</b><br>"

if results.content.status != 'error' and results.success:
  note_text += f"AWS GuardDuty: Playbook: <b>{WF_NAME}</b><br>Successfully executed for SOAR function <b>{FN_NAME}</b><br>"
  if results.content:
    response_body = results.get("content")
    threat_intel_set_id = response_body.get("ThreatIntelSetId")
    note_text += f"ThreatIntelSetId: {threat_intel_set_id}"
else:
  note_text += f"AWS GuardDuty: Playbook: <b>{WF_NAME}</b><br>Execution error for SOAR function <b>{FN_NAME}</b><br>"
  if results.reason is None:
    note_text += f"<b>Reason:</b> {results.get('content').get('msg')}"
  else:
    note_text += f"<b>Reason:</b> {results.get('reason')}"
incident.addNote(helper.createRichText(note_text))


Function - AWS GuardDuty: Get ThreatIntelSet

SOAR function to read a threat intel set from AWS GuardDuty.

screenshot: fn-aws-guardduty-get-threatintelset

Inputs:

Name

Type

Required

Example

Tooltip

aws_gd_detector_id

text

Yes

-

AWS GuardDuty detector ID.

aws_gd_region

text

Yes

-

AWS GuardDuty region.

aws_gd_threat_intel_set_id

text

Yes

-

AWS GuardDuty unique id associated with a threatintelset.

Outputs:

NOTE: This example might be in JSON format, but results is a Python Dictionary on the SOAR platform.

results = {
  "version": 2,
  "success": "True",
  "reason": "None",
  "content": {
    "Name": "Test 18",
    "Format": "TXT",
    "Location": "s3://test-threat-intel-set/malicious_ip.txt",
    "Tags": {
      "Mitigation": "Possible",
      "Severity": "LOW"
    },
    "Status": "INACTIVE"
  },
  "raw": "None",
  "inputs": {
    "aws_gd_region": "us-east-1",
    "aws_gd_detector_id": "48bb********************b7ccbc82",
    "aws_gd_threat_intel_set_id": "114da827a1d0442b96f7039275b321e8"
  },
  "metrics": {
    "version": "1.0",
    "package": "fn-aws-guardduty",
    "package_version": "2.0.0",
    "host": "localhost",
    "execution_time_ms": 972,
    "timestamp": "2025-07-18 14:41:10"
  }
}

Example Function Input Script:

inputs.aws_gd_region = incident.properties.aws_guardduty_region
inputs.aws_gd_detector_id = incident.properties.aws_guardduty_detector_id
inputs.aws_gd_threat_intel_set_id = playbook.inputs.aws_gd_threat_intel_set_id

Example Function Post Process Script:

#This is a Post-Processing Script for AWS GuardDuty GET ThreatIntelset

FN_NAME = "aws_guardduty_get_threatintelset"
WF_NAME = "AWS GuardDuty: GET ThreatIntelSet"

results = playbook.functions.results.response_output

note_text = f"Action ran for AWS Region: <b>{incident.properties.aws_guardduty_region}</b><br>"

if results.success:
  note_text += f"AWS GuardDuty: Playbook: <b>{WF_NAME}</b><br>Successfully executed for SOAR function <b>{FN_NAME}</b><br>"
  if results.content:
    response_body = results.get("content")
    threat_intel_set_id = response_body.get("ThreatIntelSetId")
    note_text += f"<b>Information about the ThreatIntelSet:</b><br>"
    note_text += f"ThreatIntelSetId: {playbook.inputs.aws_gd_threat_intel_set_id}<br>"
    note_text += f"Name: {response_body.get('Name')}<br>Format: {response_body.get('Format')}<br>Location: {response_body.get('Location')}<br>Status: {response_body.get('Status')}<br>Tags: {response_body.get('Tags')}<br>"
else:
  note_text += f"AWS GuardDuty: Playbook: <b>{WF_NAME}</b><br>Execution error for SOAR function <b>{FN_NAME}</b><br>"
  note_text += f"<b>Reason:</b> {results.get('reason')}"
incident.addNote(helper.createRichText(note_text))


Function - AWS GuardDuty: List ThreatIntelSet

SOAR function to read list of all threat intel sets from AWS GuardDuty.

screenshot: fn-aws-guardduty-list-threatintelset

Inputs:

Name

Type

Required

Example

Tooltip

aws_gd_detector_id

text

Yes

-

AWS GuardDuty detector ID.

aws_gd_region

text

Yes

-

AWS GuardDuty region.

aws_gd_max_results

number

No

-

AWS GuardDuty maximum number of results you want to retrieve.

aws_gd_next_token

text

No

-

AWS GuardDuty pagination parameter to be used on the next list operation to retrieve more items.

Outputs:

NOTE: This example might be in JSON format, but results is a Python Dictionary on the SOAR platform.

results = {
  "version": 2,
  "success": "True",
  "reason": "None",
  "content": [
    "114da827a1d0442b96f7039275b321e8",
    "1acc0467837941db18401c6cd2e2287b",
    "4face156778d48a3a06663dd461187ce",
    "68e7855700034e989863db54335ae22b"
  ],
  "raw": "None",
  "inputs": {
    "aws_gd_max_results": 5,
    "aws_gd_region": "us-east-1",
    "aws_gd_next_token": "***",
    "aws_gd_detector_id": "48bb********************b7ccbc82"
  },
  "metrics": {
    "version": "1.0",
    "package": "fn-aws-guardduty",
    "package_version": "2.0.0",
    "hoat": "localhost",
    "execution_time_ms": 1080,
    "timestamp": "2025-07-18 14:54:25"
  }
}

Example Function Input Script:

inputs.aws_gd_region = incident.properties.aws_guardduty_region
inputs.aws_gd_detector_id = incident.properties.aws_guardduty_detector_id
inputs.aws_gd_max_results = playbook.inputs.aws_gd_max_results
inputs.aws_gd_next_token = playbook.inputs.aws_gd_next_token

Example Function Post Process Script:

#This is a Post-Processing Script for AWS GuardDuty List ThreatIntelset

FN_NAME = "aws_guardduty_list_threatintelset"
WF_NAME = "AWS GuardDuty: List ThreatIntelSet"

results = playbook.functions.results.response_output

note_text = f"Action ran for AWS Region: <b>{incident.properties.aws_guardduty_region}</b><br>"

if results.content and results.success:
  note_text += f"AWS GuardDuty: Playbook: <b>{WF_NAME}</b><br>Successfully executed for SOAR function <b>{FN_NAME}</b><br>"
  if results.content:
    threat_intel_set_ids = results.get("content")
    note_text += f"<b>Listing all the ThreatIntelSetIds:</b><br>{threat_intel_set_ids}"
else:
  note_text += f"AWS GuardDuty: Playbook: <b>{WF_NAME}</b><br>Execution error for SOAR function <b>{FN_NAME}</b><br>"
  if results.reason is None:
    note_text += f"<b>Reason:</b> No ThreatIntelSets found on AWS GuardDuty for this region"
  else:
    note_text += f"<b>Reason:</b> {results.get('reason')}"
incident.addNote(helper.createRichText(note_text))


Function - AWS GuardDuty: Update ThreatIntelSet

SOAR function to update an existing threat intel set on AWS GuardDuty.

screenshot: fn-aws-guardduty-update-threatintelset

Inputs:

Name

Type

Required

Example

Tooltip

aws_gd_detector_id

text

Yes

-

AWS GuardDuty detector ID.

aws_gd_region

text

Yes

-

AWS GuardDuty region.

aws_gd_threat_intel_set_id

text

Yes

-

AWS GuardDuty unique id associated with a threatintelset.

aws_gd_new_name

text

No

-

AWS GuardDuty new name for the threatintelset.

aws_gd_new_location

text

No

s3://example_bucket/example.txt

AWS GuardDuty threatintelset new file location. URI can be retrieved from AWS S3 bucket.

aws_gd_new_activate

boolean

No

-

AWS GuardDuty update threatintelset new activation status. True indicates that the AWS GuardDuty can use this threatintelset in AWS GuardDuty findings.

Outputs:

NOTE: This example might be in JSON format, but results is a Python Dictionary on the SOAR platform.

results = {
  "version": 2,
  "success": "True",
  "reason": "None",
  "content": {
    "ResponseMetadata": {
      "RequestId": "ef9c6a36-1a25-495c-b193-59a45e5764c5",
      "HTTPStatusCode": 200,
      "HTTPHeaders": {
        "date": "Fri, 18 Jul 2025 14:11:35 GMT",
        "content-type": "application/json",
        "content-length": "0",
        "connection": "***",
        "x-amzn-requestid": "ef9c6a36-1a25-495c-b193-59a45e5764c5",
        "access-control-allow-origin": "*",
        "access-control-allow-headers": "Content-Type,X-Amz-Date,Authorization,X-Api-Key,X-Amz-Security-Token,X-Amz-Content-Sha256,X-Amz-User-Agent,*,Date,X-Amz-Target,x-amzn-platform-id,x-amzn-trace-id",
        "x-amz-apigw-id": "N6JjrHLdIAMEt8Q=",
        "access-control-expose-headers": "x-amzn-ErrorType,x-amzn-requestid,x-amzn-errormessage,x-amzn-trace-id,x-amz-apigw-id,Date",
        "x-amzn-trace-id": "Root=1-687a5617-2f62a30c63bb69fb29504207;Parent=3aba685ead709b1f;Sampled=0;Lineage=1:c7568072:0",
        "access-control-max-age": "86400"
      },
      "RetryAttempts": 0
    },
    "status": "ok"
  },
  "raw": "None",
  "inputs": {
    "aws_gd_new_location": "None",
    "aws_gd_region": "us-east-1",
    "aws_gd_new_name": "New Test 18",
    "aws_gd_detector_id": "48bb********************b7ccbc82",
    "aws_gd_threat_intel_set_id": "4face156778d48a3a06663dd461187ce",
    "aws_gd_new_activate": "None"
  },
  "metrics": {
    "version": "1.0",
    "package": "fn-aws-guardduty",
    "package_version": "2.0.0",
    "host": "localhost",
    "execution_time_ms": 1269,
    "timestamp": "2025-07-18 15:11:35"
  }
}

Example Function Input Script:

inputs.aws_gd_region = incident.properties.aws_guardduty_region
inputs.aws_gd_detector_id = incident.properties.aws_guardduty_detector_id
inputs.aws_gd_threat_intel_set_id = playbook.inputs.aws_gd_threat_intel_set_id
inputs.aws_gd_new_name = playbook.inputs.aws_gd_new_name
inputs.aws_gd_new_location = playbook.inputs.aws_gd_new_location
inputs.aws_gd_new_activate = playbook.inputs.aws_gd_new_activate

Example Function Post Process Script:

#This is a Post-Processing Script for AWS GuardDuty Update ThreatIntelset

FN_NAME = "aws_guardduty_update_threatintelset"
WF_NAME = "AWS GuardDuty: Update ThreatIntelSet"

results = playbook.functions.results.response_output

note_text = f"Action ran for AWS Region: <b>{incident.properties.aws_guardduty_region}</b><br>"

if results.content.status != 'error' and results.success:
  note_text += f"AWS GuardDuty: Playbook: <b>{WF_NAME}</b><br>Successfully executed for SOAR function <b>{FN_NAME}</b><br>"
  if results.content:
    response_body = results.get("content")
    response_status = response_body.get("status")
    note_text += f"<b>Status of request:</b> {response_status}<br>"
else:
  note_text += f"AWS GuardDuty: Playbook: <b>{WF_NAME}</b><br>Execution error for SOAR function <b>{FN_NAME}</b><br>"
  if results.reason is None:
    note_text += f"<b>Reason:</b> {results.get('content').get('msg')}"
  else:
    note_text += f"<b>Reason:</b> {results.get('reason')}"
incident.addNote(helper.createRichText(note_text))


Function - AWS GuardDuty: Delete ThreatIntelSet

SOAR function to delete a threat intel set from AWS GuardDuty.

screenshot: fn-aws-guardduty-delete-threatintelset

Inputs:

Name

Type

Required

Example

Tooltip

aws_gd_detector_id

text

Yes

-

AWS GuardDuty detector ID.

aws_gd_region

text

Yes

-

AWS GuardDuty region.

aws_gd_threat_intel_set_id

text

Yes

-

AWS GuardDuty unique id associated with a threatintelset.

Outputs:

NOTE: This example might be in JSON format, but results is a Python Dictionary on the SOAR platform.

results = {
  "version": 2,
  "success": "True",
  "reason": "None",
  "content": {
    "ResponseMetadata": {
      "RequestId": "070495ba-88a7-4c18-93f7-a0d89136763d",
      "HTTPStatusCode": 200,
      "HTTPHeaders": {
        "date": "Fri, 18 Jul 2025 14:25:30 GMT",
        "content-type": "application/json",
        "content-length": "0",
        "connection": "***",
        "x-amzn-requestid": "070495ba-88a7-4c18-93f7-a0d89136763d",
        "access-control-allow-origin": "*",
        "access-control-allow-headers": "Content-Type,X-Amz-Date,Authorization,X-Api-Key,X-Amz-Security-Token,X-Amz-Content-Sha256,X-Amz-User-Agent,*,Date,X-Amz-Target,x-amzn-platform-id,x-amzn-trace-id",
        "x-amz-apigw-id": "N6LlsGaZIAMEqpw=",
        "access-control-expose-headers": "x-amzn-ErrorType,x-amzn-requestid,x-amzn-errormessage,x-amzn-trace-id,x-amz-apigw-id,Date",
        "x-amzn-trace-id": "Root=1-687a5957-396bfc5e5ec974a90850c898;Parent=166ae2d7206e62ff;Sampled=0;Lineage=1:511d78a8:0",
        "access-control-max-age": "86400"
      },
      "RetryAttempts": 0
    },
    "status": "ok"
  },
  "raw": "None",
  "inputs": {
    "aws_gd_region": "us-east-1",
    "aws_gd_detector_id": "48bb********************b7ccbc82",
    "aws_gd_threat_intel_set_id": "1acc0467837941db18401c6cd2e2287b"
  },
  "metrics": {
    "version": "1.0",
    "package": "fn-aws-guardduty",
    "package_version": "2.0.0",
    "host": "localhost",
    "execution_time_ms": 3659,
    "timestamp": "2025-07-18 15:25:30"
  }
}

Example Function Input Script:

inputs.aws_gd_region = incident.properties.aws_guardduty_region
inputs.aws_gd_detector_id = incident.properties.aws_guardduty_detector_id
inputs.aws_gd_threat_intel_set_id = playbook.inputs.aws_gd_threat_intel_set_id

Example Function Post Process Script:

#This is a Post-Processing Script for AWS GuardDuty Delete ThreatIntelset

FN_NAME = "aws_guardduty_delete_threatintelset"
WF_NAME = "AWS GuardDuty: Delete ThreatIntelSet"

results = playbook.functions.results.response_output

note_text = f"Action ran for AWS Region: <b>{incident.properties.aws_guardduty_region}</b><br>"

if results.content.status != 'error' and results.success:
  note_text += f"AWS GuardDuty: Playbook: <b>{WF_NAME}</b><br>Successfully executed for SOAR function <b>{FN_NAME}</b><br>"
  if results.content:
    response_body = results.get("content")
    note_text += f"ThreatIntelSet Deleted: {playbook.inputs.aws_gd_threat_intel_set_id}<br>"
    note_text += f"<b>Status of request:</b> {response_body.get('status')}"
else:
  note_text += f"AWS GuardDuty: Playbook: <b>{WF_NAME}</b><br>Execution error for SOAR function <b>{FN_NAME}</b><br>"
  if results.reason is None:
    note_text += f"<b>Reason:</b> {results.get('content').get('msg')}"
  else:
    note_text += f"<b>Reason:</b> {results.get('reason')}"
incident.addNote(helper.createRichText(note_text))


Function - AWS GuardDuty: Create IPSet

SOAR function to create a new ip set on AWS GuardDuty.

screenshot: fn-aws-guardduty-create-ipset

Inputs:

Name

Type

Required

Example

Tooltip

aws_gd_detector_id

text

Yes

-

AWS GuardDuty detector ID.

aws_gd_region

text

Yes

-

AWS GuardDuty region.

aws_gd_name

text

Yes

-

AWS GuardDuty ipset name that we specify.

aws_gd_format

text

Yes

TXT, STIX, OTX_CSV, ALIEN_VAULT, PROOF_POINT, FIRE_EYE

AWS GuardDuty file format for the ipset.

aws_gd_location

text

Yes

s3://example_bucket/example.txt

AWS GuardDuty ipset file location. URI can be retrieved from AWS S3 bucket.

aws_gd_activate

boolean

Yes

-

AWS GuardDuty ipset activation. True indicates that the AWS GuardDuty can use this ipset in AWS GuardDuty findings.

aws_gd_client_token

text

No

-

AWS GuardDuty ipset idempotency token. (Autopopulated when not specified)

aws_gd_tags

text

No

-

AWS GuardDuty tags. These are key-value pairs used to categorize and manage the ipset lists. It is also a form of metadata which gives more insights about the resource.

aws_gd_bucket_owner

text

No

-

AWS GuardDuty S3 bucket owner account id.

Outputs:

NOTE: This example might be in JSON format, but results is a Python Dictionary on the SOAR platform.

results = {
    "version": 2,
    "success": "True",
    "reason": "None",
    "content": {
      "ResponseMetadata": {
        "RequestId": "1be8305d-f302-4301-8f00-4a6d15c0a821",
        "HTTPStatusCode": 200,
        "HTTPHeaders": {
          "date": "Mon, 21 Jul 2025 15:52:24 GMT",
          "content-type": "application/json",
          "content-length": "46",
          "connection": "***",
          "x-amzn-requestid": "1be8305d-f302-4301-8f00-4a6d15c0a821",
          "access-control-allow-origin": "*",
          "access-control-allow-headers": "Content-Type,X-Amz-Date,Authorization,X-Api-Key,X-Amz-Security-Token,X-Amz-Content-Sha256,X-Amz-User-Agent,*,Date,X-Amz-Target,x-amzn-platform-id,x-amzn-trace-id",
          "x-amz-apigw-id": "OERH2EjfIAMEVrA=",
          "access-control-expose-headers": "x-amzn-ErrorType,x-amzn-requestid,x-amzn-errormessage,x-amzn-trace-id,x-amz-apigw-id,Date",
          "x-amzn-trace-id": "Root=1-687e6231-7b0f093571c8dbf50752f9d2;Parent=0774277cbf97c298;Sampled=0;Lineage=1:d3f66639:0",
          "access-control-max-age": "86400"
        },
        "RetryAttempts": 0
      },
      "IpSetId": "6c4c7290f81b40ab85e298a785b1db38",
      "status": "ok"
    },
    "raw": "None",
    "inputs": {
      "aws_gd_format": "TXT",
      "aws_gd_bucket_owner": "None",
      "aws_gd_name": "Test 21",
      "aws_gd_region": "us-east-1",
      "aws_gd_location": "s3://test-ip-set/trusted_ip.txt",
      "aws_gd_client_token": "***",
      "aws_gd_tags": "Owner: Hydra",
      "aws_gd_activate": "True",
      "aws_gd_detector_id": "48bb********************b7ccbc82"
    },
    "metrics": {
      "version": "1.0",
      "package": "fn-aws-guardduty",
      "package_version": "2.0.0",
      "host": "localhost",
      "execution_time_ms": 8094,
      "timestamp": "2025-07-21 16:52:24"
    }
}

Example Function Input Script:

inputs.aws_gd_region = incident.properties.aws_guardduty_region
inputs.aws_gd_detector_id = incident.properties.aws_guardduty_detector_id
inputs.aws_gd_name = playbook.inputs.aws_gd_name
inputs.aws_gd_activate = playbook.inputs.aws_gd_activate
inputs.aws_gd_format = playbook.inputs.aws_gd_format
inputs.aws_gd_location = playbook.inputs.aws_gd_location
inputs.aws_gd_client_token = playbook.inputs.aws_gd_client_token
inputs.aws_gd_tags = playbook.inputs.aws_gd_tags
inputs.aws_gd_bucket_owner = playbook.inputs.aws_gd_bucket_owner

Example Function Post Process Script:

#This is a Post-Processing Script for AWS GuardDuty Create IPset

FN_NAME = "aws_guardduty_create_ipset"
WF_NAME = "AWS GuardDuty: Create IPSet"

results = playbook.functions.results.response_output

note_text = f"Action ran for AWS Region: <b>{incident.properties.aws_guardduty_region}</b><br>"

if results.content.status != 'error' and results.success:
  note_text += f"AWS GuardDuty: Playbook: <b>{WF_NAME}</b><br>Successfully executed for SOAR function <b>{FN_NAME}</b><br>"
  if results.content:
    response_body = results.get("content")
    ip_set_id = response_body.get("IpSetId")
    note_text += f"IPSetId: {ip_set_id}"
else:
  note_text += f"AWS GuardDuty: Playbook: <b>{WF_NAME}</b><br>Execution error for SOAR function <b>{FN_NAME}</b><br>"
  if results.reason is None:
    note_text += f"<b>Reason:</b> {results.get('content').get('msg')}"
  else:
    note_text += f"<b>Reason:</b> {results.get('reason')}"
incident.addNote(helper.createRichText(note_text))


Function - AWS GuardDuty: Get IPSet

SOAR function to read a ip set from AWS GuardDuty.

screenshot: fn-aws-guardduty-get-ipset

Inputs:

Name

Type

Required

Example

Tooltip

aws_gd_detector_id

text

Yes

-

AWS GuardDuty detector ID.

aws_gd_region

text

Yes

-

AWS GuardDuty region.

aws_gd_ip_set_id

text

Yes

-

AWS GuardDuty unique id associated with a ipset.

Outputs:

NOTE: This example might be in JSON format, but results is a Python Dictionary on the SOAR platform.

results = {
    "version": 2,
    "success": "True",
    "reason": "None",
    "content": {
      "Name": "Test 21",
      "Format": "TXT",
      "Location": "s3://test-ip-set/trusted_ip.txt",
      "Tags": {
        "Owner": "Hydra"
      },
      "Status": "ACTIVE"
    },
    "raw": "None",
    "inputs": {
      "aws_gd_region": "us-east-1",
      "aws_gd_ip_set_id": "6c4c7290f81b40ab85e298a785b1db38",
      "aws_gd_detector_id": "48bb********************b7ccbc82"
    },
    "metrics": {
      "version": "1.0",
      "package": "fn-aws-guardduty",
      "package_version": "2.0.0",
      "host": "localhost",
      "execution_time_ms": 720,
      "timestamp": "2025-07-23 10:20:20"
    }
}

Example Function Input Script:

inputs.aws_gd_region = incident.properties.aws_guardduty_region
inputs.aws_gd_detector_id = incident.properties.aws_guardduty_detector_id
inputs.aws_gd_ip_set_id = playbook.inputs.aws_gd_ip_set_id

Example Function Post Process Script:

#This is a Post-Processing Script for AWS GuardDuty GET IPset

FN_NAME = "aws_guardduty_get_ipset"
WF_NAME = "AWS GuardDuty: GET IPSet"

results = playbook.functions.results.response_output

note_text = f"Action ran for AWS Region: <b>{incident.properties.aws_guardduty_region}</b><br>"

if results.success:
  note_text += f"AWS GuardDuty: Playbook: <b>{WF_NAME}</b><br>Successfully executed for SOAR function <b>{FN_NAME}</b><br>"
  if results.content:
    response_body = results.get("content")
    ip_set_id = response_body.get("IpSetId")
    note_text += f"<b>Information about the IPSet:</b><br>"
    note_text += f"IPSetId: {playbook.inputs.aws_gd_ip_set_id}<br>"
    note_text += f"Name: {response_body.get('Name')}<br>Format: {response_body.get('Format')}<br>Location: {response_body.get('Location')}<br>Status: {response_body.get('Status')}<br>Tags: {response_body.get('Tags')}<br>BucketOwner: {response_body.get('ExpectedBucketOwner')}<br>"
else:
  note_text += f"AWS GuardDuty: Playbook: <b>{WF_NAME}</b><br>Execution error for SOAR function <b>{FN_NAME}</b><br>"
  note_text += f"<b>Reason:</b> {results.get('reason')}"
incident.addNote(helper.createRichText(note_text))


Function - AWS GuardDuty: List IPSet

SOAR function to read list of all ip sets from AWS GuardDuty.

screenshot: fn-aws-guardduty-list-ipset

Inputs:

Name

Type

Required

Example

Tooltip

aws_gd_detector_id

text

Yes

-

AWS GuardDuty detector ID.

aws_gd_region

text

Yes

-

AWS GuardDuty region.

aws_gd_max_results

number

No

-

AWS GuardDuty maximum number of results you want to retrieve.

aws_gd_next_token

text

No

-

AWS GuardDuty pagination parameter to be used on the next list operation to retrieve more items.

Outputs:

NOTE: This example might be in JSON format, but results is a Python Dictionary on the SOAR platform.

results = {
    "version": 2,
    "success": "True",
    "reason": "None",
    "content": [
      "6c4c7290f81b40ab85e298a785b1db38"
    ],
    "raw": "None",
    "inputs": {
      "aws_gd_max_results": 5,
      "aws_gd_region": "us-east-1",
      "aws_gd_next_token": "***",
      "aws_gd_detector_id": "48bb********************b7ccbc82"
    },
    "metrics": {
      "version": "1.0",
      "package": "fn-aws-guardduty",
      "package_version": "2.0.0",
      "host": "localhost",
      "execution_time_ms": 698,
      "timestamp": "2025-07-23 15:54:02"
    }
}

Example Function Input Script:

inputs.aws_gd_region = incident.properties.aws_guardduty_region
inputs.aws_gd_detector_id = incident.properties.aws_guardduty_detector_id
inputs.aws_gd_max_results = playbook.inputs.aws_gd_max_results
inputs.aws_gd_next_token = playbook.inputs.aws_gd_next_token

Example Function Post Process Script:

#This is a Post-Processing Script for AWS GuardDuty List IPset

FN_NAME = "aws_guardduty_list_ip_set"
WF_NAME = "AWS GuardDuty: List IPSet"

results = playbook.functions.results.response_output

note_text = f"Action ran for AWS Region: <b>{incident.properties.aws_guardduty_region}</b><br>"

if results.content and results.success:
  note_text += f"AWS GuardDuty: Playbook: <b>{WF_NAME}</b><br>Successfully executed for SOAR function <b>{FN_NAME}</b><br>"
  if results.content:
    ip_set_ids = results.get("content")
    note_text += f"<b>Listing all the IPSetIds:</b><br>{ip_set_ids}"
else:
  note_text += f"AWS GuardDuty: Playbook: <b>{WF_NAME}</b><br>Execution error for SOAR function <b>{FN_NAME}</b><br>"
  if results.reason is None:
    note_text += f"<b>Reason:</b> No IPSets found on AWS GuardDuty for this region"
  else:
    note_text += f"<b>Reason:</b> {results.get('reason')}"
incident.addNote(helper.createRichText(note_text))


Function - AWS GuardDuty: Update IPSet

SOAR function to update an existing ip set on AWS GuardDuty.

screenshot: fn-aws-guardduty-update-ipset

Inputs:

Name

Type

Required

Example

Tooltip

aws_gd_detector_id

text

Yes

-

AWS GuardDuty detector ID.

aws_gd_region

text

Yes

-

AWS GuardDuty region.

aws_gd_threat_intel_set_id

text

Yes

-

AWS GuardDuty unique id associated with a ipset.

aws_gd_new_name

text

No

-

AWS GuardDuty new name for the ipset.

aws_gd_new_location

text

No

s3://example_bucket/example.txt

AWS GuardDuty ipset new file location. URI can be retrieved from AWS S3 bucket.

aws_gd_new_activate

boolean

No

-

AWS GuardDuty update ipset new activation status. True indicates that the AWS GuardDuty can use this ipset in AWS GuardDuty findings.

aws_gd_bucket_owner

text

No

-

AWS GuardDuty S3 bucket owner account id.

Outputs:

NOTE: This example might be in JSON format, but results is a Python Dictionary on the SOAR platform.

results = {
    "version": 2,
    "success": "True",
    "reason": "None",
    "content": {
      "ResponseMetadata": {
        "RequestId": "1b12ee00-ad22-4282-acdd-b00392e7cf9b",
        "HTTPStatusCode": 200,
        "HTTPHeaders": {
          "date": "Thu, 24 Jul 2025 15:30:47 GMT",
          "content-type": "application/json",
          "content-length": "0",
          "connection": "***",
          "x-amzn-requestid": "1b12ee00-ad22-4282-acdd-b00392e7cf9b",
          "access-control-allow-origin": "*",
          "access-control-allow-headers": "Content-Type,X-Amz-Date,Authorization,X-Api-Key,X-Amz-Security-Token,X-Amz-Content-Sha256,X-Amz-User-Agent,*,Date,X-Amz-Target,x-amzn-platform-id,x-amzn-trace-id",
          "x-amz-apigw-id": "OOGyPEGLoAMEjtg=",
          "access-control-expose-headers": "x-amzn-ErrorType,x-amzn-requestid,x-amzn-errormessage,x-amzn-trace-id,x-amz-apigw-id,Date",
          "x-amzn-trace-id": "Root=1-688251a7-3dff520410c0e6d3091b3ec1;Parent=03617a02703ed4c9;Sampled=0;Lineage=1:f75216a5:0",
          "access-control-max-age": "86400"
        },
        "RetryAttempts": 0
      },
      "status": "ok"
    },
    "raw": "None",
    "inputs": {
      "aws_gd_new_location": "None",
      "aws_gd_bucket_owner": "None",
      "aws_gd_region": "us-east-1",
      "aws_gd_new_name": "None",
      "aws_gd_ip_set_id": "6c4c7290f81b40ab85e298a785b1db38",
      "aws_gd_detector_id": "48bb********************b7ccbc82",
      "aws_gd_new_activate": "False"
    },
    "metrics": {
      "version": "1.0",
      "package": "fn-aws-guardduty",
      "package_version": "2.0.0",
      "host": "localhost",
      "execution_time_ms": 1573,
      "timestamp": "2025-07-24 16:30:47"
    }
}

Example Function Input Script:

inputs.aws_gd_region = incident.properties.aws_guardduty_region
inputs.aws_gd_detector_id = incident.properties.aws_guardduty_detector_id
inputs.aws_gd_ip_set_id = playbook.inputs.aws_gd_ip_set_id
inputs.aws_gd_new_name = playbook.inputs.aws_gd_new_name
inputs.aws_gd_new_location = playbook.inputs.aws_gd_new_location
inputs.aws_gd_new_activate = playbook.inputs.aws_gd_new_activate
inputs.aws_gd_bucket_owner = playbook.inputs.aws_gd_bucket_owner

Example Function Post Process Script:

#This is a Post-Processing Script for AWS GuardDuty Update IPset

FN_NAME = "aws_guardduty_update_ipset"
WF_NAME = "AWS GuardDuty: Update IPSet"

results = playbook.functions.results.response_output

note_text = f"Action ran for AWS Region: <b>{incident.properties.aws_guardduty_region}</b><br>"

if results.content.status != 'error' and results.success:
  note_text += f"AWS GuardDuty: Playbook: <b>{WF_NAME}</b><br>Successfully executed for SOAR function <b>{FN_NAME}</b><br>"
  if results.content:
    response_body = results.get("content")
    response_status = response_body.get("status")
    note_text += f"<b>Status of request:</b> {response_status}<br>"
else:
  note_text += f"AWS GuardDuty: Playbook: <b>{WF_NAME}</b><br>Execution error for SOAR function <b>{FN_NAME}</b><br>"
  if results.reason is None:
    note_text += f"<b>Reason:</b> {results.get('content').get('msg')}"
  else:
    note_text += f"<b>Reason:</b> {results.get('reason')}"
incident.addNote(helper.createRichText(note_text))


Function - AWS GuardDuty: Delete IPSet

SOAR function to delete a ip set from AWS GuardDuty.

screenshot: fn-aws-guardduty-delete-ipset

Inputs:

Name

Type

Required

Example

Tooltip

aws_gd_detector_id

text

Yes

-

AWS GuardDuty detector ID.

aws_gd_region

text

Yes

-

AWS GuardDuty region.

aws_gd_ip_set_id

text

Yes

-

AWS GuardDuty unique id associated with a ipset.

Outputs:

NOTE: This example might be in JSON format, but results is a Python Dictionary on the SOAR platform.

results = {
    "version": 2,
    "success": "True",
    "reason": "None",
    "content": {
      "ResponseMetadata": {
        "RequestId": "5b6eb26f-29f2-42fd-997f-6617dd1c2e40",
        "HTTPStatusCode": 200,
        "HTTPHeaders": {
          "date": "Fri, 25 Jul 2025 10:58:36 GMT",
          "content-type": "application/json",
          "content-length": "0",
          "connection": "***",
          "x-amzn-requestid": "5b6eb26f-29f2-42fd-997f-6617dd1c2e40",
          "access-control-allow-origin": "*",
          "access-control-allow-headers": "Content-Type,X-Amz-Date,Authorization,X-Api-Key,X-Amz-Security-Token,X-Amz-Content-Sha256,X-Amz-User-Agent,*,Date,X-Amz-Target,x-amzn-platform-id,x-amzn-trace-id",
          "x-amz-apigw-id": "OQx2fHRDIAMEnfQ=",
          "access-control-expose-headers": "x-amzn-ErrorType,x-amzn-requestid,x-amzn-errormessage,x-amzn-trace-id,x-amz-apigw-id,Date",
          "x-amzn-trace-id": "Root=1-6883635c-4177cf1b3b77b0c042d84c30;Parent=34bf08862f02b77e;Sampled=0;Lineage=1:7ef22fc1:0",
          "access-control-max-age": "86400"
        },
        "RetryAttempts": 0
      },
      "status": "ok"
    },
    "raw": "None",
    "inputs": {
      "aws_gd_region": "us-east-1",
      "aws_gd_ip_set_id": "6c4c7290f81b40ab85e298a785b1db38",
      "aws_gd_detector_id": "48bb********************b7ccbc82"
    },
    "metrics": {
      "version": "1.0",
      "package": "fn-aws-guardduty",
      "package_version": "2.0.0",
      "host": "localhost",
      "execution_time_ms": 4106,
      "timestamp": "2025-07-25 11:58:36"
    }
}

Example Function Input Script:

inputs.aws_gd_region = incident.properties.aws_guardduty_region
inputs.aws_gd_detector_id = incident.properties.aws_guardduty_detector_id
inputs.aws_gd_ip_set_id = playbook.inputs.aws_gd_ip_set_id

Example Function Post Process Script:

#This is a Post-Processing Script for AWS GuardDuty Delete IPset

FN_NAME = "aws_guardduty_delete_IPset"
WF_NAME = "AWS GuardDuty: Delete IPSet"

results = playbook.functions.results.response_output

note_text = f"Action ran for AWS Region: <b>{incident.properties.aws_guardduty_region}</b><br>"

if results.content.status != 'error' and results.success:
  note_text += f"AWS GuardDuty: Playbook: <b>{WF_NAME}</b><br>Successfully executed for SOAR function <b>{FN_NAME}</b><br>"
  if results.content:
    response_body = results.get("content")
    note_text += f"IPSet Deleted: {playbook.inputs.aws_gd_ip_set_id}<br>"
    note_text += f"<b>Status of request:</b> {response_body.get('status')}"
else:
  note_text += f"AWS GuardDuty: Playbook: <b>{WF_NAME}</b><br>Execution error for SOAR function <b>{FN_NAME}</b><br>"
  if results.reason is None:
    note_text += f"<b>Reason:</b> {results.get('content').get('msg')}"
  else:
    note_text += f"<b>Reason:</b> {results.get('reason')}"
incident.addNote(helper.createRichText(note_text))


Playbooks

Playbook Name

Description

Activation Type

Object

Status

Condition

Example: AWS GuardDuty: Archive Finding (PB)

A SOAR playbook to archive an AWS GuardDuty finding when the corresponding incident is closed.

Automatic

incident

enabled

incident.plan_status changed_to Closed AND incident.properties.aws_guardduty_archived not_equals True AND incident.properties.aws_guardduty_detector_id has_a_value AND incident.properties.aws_guardduty_finding_id has_a_value AND incident.properties.aws_guardduty_region has_a_value

Example: AWS GuardDuty: Refresh Finding Details (PB)

A SOAR playbook to refresh or update AWS GuardDuty finding details in an incident.

Manual

incident

enabled

incident.properties.aws_guardduty_detector_id has_a_value AND incident.properties.aws_guardduty_finding_id has_a_value AND incident.properties.aws_guardduty_region has_a_value

Example: AWS GuardDuty: Update Finding Details (PB)

None

Automatic

incident

enabled

incident.properties.aws_guardduty_detector_id has_a_value AND incident.properties.aws_guardduty_finding_id has_a_value AND incident.properties.aws_guardduty_finding_updated_at has_a_value AND incident.properties.aws_guardduty_region has_a_value AND incident.properties.aws_guardduty_trigger_refresh changed AND incident.properties.aws_guardduty_trigger_refresh equals True

AWS GuardDuty: Create ThreatIntelSet (PB)

SOAR function to create a new threat intel set on AWS GuardDuty.

Manual

incident

enabled

incident.properties.aws_guardduty_detector_id has_a_value AND incident.properties.aws_guardduty_region has_a_value

AWS GuardDuty: GET ThreatIntelSet (PB)

SOAR function to read a threat intel set from AWS GuardDuty.

Manual

incident

enabled

incident.properties.aws_guardduty_detector_id has_a_value AND incident.properties.aws_guardduty_region has_a_value

AWS GuardDuty: List ThreatIntelSet (PB)

SOAR function to read list of all threat intel sets from AWS GuardDuty.

Manual

incident

enabled

incident.properties.aws_guardduty_detector_id has_a_value AND incident.properties.aws_guardduty_region has_a_value

AWS GuardDuty: Update ThreatIntelSet (PB)

SOAR function to update an existing threat intel set on AWS GuardDuty.

Manual

incident

enabled

incident.properties.aws_guardduty_detector_id has_a_value AND incident.properties.aws_guardduty_region has_a_value

AWS GuardDuty: Delete ThreatIntelSet (PB)

SOAR function to delete a threat intel set from AWS GuardDuty.

Manual

incident

enabled

incident.properties.aws_guardduty_detector_id has_a_value AND incident.properties.aws_guardduty_region has_a_value

AWS GuardDuty: Create IPSet (PB)

SOAR function to create a new ip set on AWS GuardDuty.

Manual

incident

enabled

incident.properties.aws_guardduty_detector_id has_a_value AND incident.properties.aws_guardduty_region has_a_value

AWS GuardDuty: GET IPSet (PB)

SOAR function to read a ip set from AWS GuardDuty.

Manual

incident

enabled

incident.properties.aws_guardduty_detector_id has_a_value AND incident.properties.aws_guardduty_region has_a_value

AWS GuardDuty: List IPSet (PB)

SOAR function to read list of all ip sets from AWS GuardDuty.

Manual

incident

enabled

incident.properties.aws_guardduty_detector_id has_a_value AND incident.properties.aws_guardduty_region has_a_value

AWS GuardDuty: Update IPSet (PB)

SOAR function to update an existing ip set on AWS GuardDuty.

Manual

incident

enabled

incident.properties.aws_guardduty_detector_id has_a_value AND incident.properties.aws_guardduty_region has_a_value

AWS GuardDuty: Delete IPSet (PB)

SOAR function to delete a ip set from AWS GuardDuty.

Manual

incident

enabled

incident.properties.aws_guardduty_detector_id has_a_value AND incident.properties.aws_guardduty_region has_a_value


Custom Layouts

  • Import the Data Tables and Custom Fields like the screenshot below:

    screenshot: custom_layouts

Data Table - GuardDuty Action/Actor Details

screenshot: dt-guardduty-actionactor-details

API Name:

gd_action_details

Columns:

Column Name

API Access Name

Type

Tooltip

Action api

action_api

text

-

Action type

action_type

text

-

Actor caller type

actor_caller_type

text

-

Asn

asn

text

-

City name

city_name

text

-

Connection direction

connection_direction

text

-

Country

country_name

text

-

DNS domain name

dns_domain_name

text

-

DNS request blocked

dns_blocked

text

-

Event first Seen

event_first_seen

text

-

Event Last Seen

event_last_seen

text

-

Finding asn org

asn_org

text

-

Finding isp

isp

text

-

Finding org

org

text

-

Local IP address

local_ip

text

-

Local port

local_port

text

-

Protocol

protocol

text

-

Query Execution date

query_execution_date

text

-

Remote IP address

remote_ip

text

-

Remote port

remote_port

text

-

Service name

service_name

text

-


Data Table - GuardDuty Finding Overview

screenshot: dt-guardduty-finding-overview

API Name:

gd_finding_overview

Columns:

Column Name

API Access Name

Type

Tooltip

Account ID

account_id

text

-

Count

count

text

-

Created at

created_at

text

-

Query Execution date

query_execution_date

text

-

Region

region

text

-

Resource ID

resource_id

text

-

Severity

severity

text

-

Updated at

updated_at

text

-


Data Table - GuardDuty Resource - Access Key Details

screenshot: dt-guardduty-resource---access-key-details

API Name:

gd_access_key_details

Columns:

Column Name

API Access Name

Type

Tooltip

Access key ID

access_key_id

text

-

Principal ID

principal_id

text

-

Query Execution date

query_execution_date

text

-

User name

user_name

text

-

User type

user_type

text

-


Data Table - GuardDuty Resource - Instance Details

screenshot: dt-guardduty-instance-details

API Name:

gd_instance_details

Columns:

Column Name

API Access Name

Type

Tooltip

ID

instance_id

text

-

Private dns name

private_dns_name

text

-

Private ip address

private_ip

text

-

Public dns name

public_dns_name

text

-

Public ip address

public_ip

text

-

Query execution date

query_execution_date

text

-

State

instance_state

text

-

Type

type

text

-


Data Table - GuardDuty Resource - S3 Bucket Details

screenshot: dt-guardduty-s3-bucket-details

API Name:

gd_s3_bucket_details

Columns:

Column Name

API Access Name

Type

Tooltip

Bucket Arn

bucket_arn

text

-

Bucket name

bucket_name

text

-

Bucket owner

bucket_owner

text

-

Bucket Type

bucket_type

text

-

Effective Permission

effective_permissions

text

-

Encryption type

encryption_type

text

-

Kms master key ARN

kms_master_key_arn

text

-

Query execution date

query_execution_date

text

-


Data Table - GuardDuty Resource Affected

screenshot: dt-guardduty-resource-affected

API Name:

gd_resource_affected

Columns:

Column Name

API Access Name

Type

Tooltip

Instance ID

instance_id

text

-

Instance type

instance_type

text

-

Query execution date

query_execution_date

text

-

Resource role

resource_role

text

-

Resource type

resource_type

text

-


Custom Fields

Label

API Access Name

Type

Prefix

Placeholder

Tooltip

AWS GuardDuty Archived

aws_guardduty_archived

text

properties

-

A true or false value that indicates whether this is GuardDuty finding has been archived.

AWS GuardDuty Count

aws_guardduty_count

text

properties

-

The number of times GuardDuty has aggregated an activity matching this pattern to this finding ID.

AWS GuardDuty Detector Id

aws_guardduty_detector_id

text

properties

-

The detector ID where the GuardDuty finding was detected.

AWS GuardDuty Finding Arn

aws_guardduty_finding_arn

text

properties

-

Arn of the GuardDuty finding.

AWS GuardDuty Finding Id

aws_guardduty_finding_id

text

properties

-

A unique Finding ID for this GuardDuty finding type and set of parameters. New occurrences of activity matching this pattern will be aggregated to the same ID.

AWS GuardDuty Finding Type

aws_guardduty_finding_type

text

properties

-

The type of activity that triggered the GuardDuty finding.

AWS GuardDuty Resource Updated At

aws_guardduty_finding_updated_at

text

properties

-

The last time this finding was updated with new activity matching the pattern that prompted GuardDuty to generate this finding.

AWS GuardDuty Region

aws_guardduty_region

text

properties

-

The AWS Region in which the GuardDuty finding was generated.

AWS GuardDuty Resource Type

aws_guardduty_resource_type

text

properties

-

The type of the affected resource of the GuardDuty finding. This value is either AccessKey, S3 bucket or Instance.

AWS GuardDuty Severity

aws_guardduty_severity

text

properties

-

The severity of the affected resource of the GuardDuty finding.

AWS GuardDuty Trigger Refresh

aws_guardduty_trigger_refresh

boolean

properties

False

Used by integration to trigger an refresh of GuardDuty incidents.


Custom Artifact Types

Display Name

API Access Name

Description

AWS IAM Access Key ID

aws_iam_access_key_id

Amazon Web Services (AWS) IAM access key id.

AWS IAM User Name

aws_iam_user_name

Amazon Web Services (AWS) IAM user name.

AWS S3 Bucket Name

aws_s3_bucket_name

Amazon Web Services (AWS) S3 bucket name.


AWS GuardDuty Troubleshooting

*AccessDeniedException –> HTTP Status Code: 403 *BadRequestException –> HTTP Status Code: 400 *InternalServerErrorException –> HTTP Status Code: 500

*Implementing CRUD functionality for ThreatIntelSets/IPSets depend a lot on the region which you are choosing. There might be cases where you feel the result should be visible but get an error of BadRequestException. Example: Region us-east-1 has a threatintelset but when running the list function to see all the threatintelsets, it fails. One of the reasons could be that you are running this playbook for a different region. Remedy: Cross verify the AWS region for which you are running the playbook and what you see the region on AWS GuardDuty environment for those ThreatIntelSets/IPSets.

Troubleshooting & Support

Refer to the documentation listed in the Requirements section for troubleshooting information.

For Support

This is an IBM supported app. Please search ibm.com/mysupport for assistance.
