On Call Manager for IBM SOAR

Table of Contents


Release Notes

Version

Date

Notes

1.0.0

07/2025

Initial Release


Overview

On Call Manager for IBM SOAR

screenshot: main

This app allows the creation of Events, updating Incidents, retrieving the details of incidents and the details of events in On Call Manager from SOAR.

Links:


Key Features

  • Create an event

  • Create a comment on an incident

  • List incidents

  • Update an incident

  • Get details of an event

  • Get details of an incident

  • Query incidents


Requirements

This app supports the IBM Security QRadar SOAR Platform and the IBM Security QRadar SOAR for IBM Cloud Pak for Security.

SOAR platform

The SOAR platform supports two app deployment mechanisms, Edge Gateway (also known as App Host) and integration server.

If deploying to a SOAR platform with an App Host, the requirements are:

  • SOAR platform >= 51.0.0.0.9339.

  • The app is in a container-based format (available from the AppExchange as a zip file).

If deploying to a SOAR platform with an integration server, the requirements are:

  • SOAR platform >= 51.0.0.0.9339.

  • The app is in the older integration format (available from the AppExchange as a zip file which contains a tar.gz file).

  • Integration server is running resilient-circuits>=51.0.0.0.0.

  • If using an API key account, make sure the account provides the following minimum permissions:

    Name

    Permissions

    Org Data

    Read

    Function

    Read

    Layout

    Read, Write

    Incident.Fields

    Write

The following SOAR platform guides provide additional information:

  • Edge Gateway Deployment Guide or App Host Deployment Guide: provides installation, configuration, and troubleshooting information, including proxy server settings.

  • Integration Server Guide: provides installation, configuration, and troubleshooting information, including proxy server settings.

  • System Administrator Guide: provides the procedure to install, configure and deploy apps.

The above guides are available on the IBM Documentation website at ibm.biz/soar-docs. On this web page, select your SOAR platform version. On the follow-on page, you can find the Edge Gateway Deployment Guide, App Host Deployment Guide, or Integration Server Guide by expanding Apps in the Table of Contents pane. The System Administrator Guide is available by expanding System Administrator.

Cloud Pak for Security

If you are deploying to IBM Cloud Pak for Security, the requirements are:

  • IBM Cloud Pak for Security >= 1.10.15.

  • Cloud Pak is configured with an Edge Gateway.

  • The app is in a container-based format (available from the AppExchange as a zip file).

The following Cloud Pak guides provide additional information:

  • Edge Gateway Deployment Guide or App Host Deployment Guide: provides installation, configuration, and troubleshooting information, including proxy server settings. From the Table of Contents, select Case Management and Orchestration & Automation > Orchestration and Automation Apps.

  • System Administrator Guide: provides information to install, configure, and deploy apps. From the IBM Cloud Pak for Security IBM Documentation table of contents, select Case Management and Orchestration & Automation > System administrator.

These guides are available on the IBM Documentation website at ibm.biz/cp4s-docs. From this web page, select your IBM Cloud Pak for Security version. From the version-specific IBM Documentation page, select Case Management and Orchestration & Automation.

Proxy Server

The app does support a proxy server.

Python Environment

Python 3.9, 3.11, and 3.12 are officially supported. When deployed as an app, the app runs on Python 3.11. Additional package dependencies may exist for each of these packages:

  • resilient-circuits>=51.0.0.0.0

Development Version

This app has been implemented using:

Product Name

Product Version

API URL

API Version

On Call Manager

NA

https://pages.github.ibm.com/cem-notification/swagger-api-document/incidents/

v1


Installation

Install

  • To install or uninstall an App or Integration on the SOAR platform, see the documentation at ibm.biz/soar-docs.

  • To install or uninstall an App on IBM Cloud Pak for Security, see the documentation at ibm.biz/cp4s-docs and follow the instructions above to navigate to Orchestration and Automation.

App Configuration

The following table provides the settings you need to configure the app. These settings are made in the app.config file. See the documentation discussed in the Requirements section for the procedure.

Config

Required

Example

Description

client_auth_cert

No

<path_to_cert.pem>

Client auth certificate

client_auth_key

No

<path_to_cert_private_key.pem>

Client auth keys

ocm_api_key_name

Yes

xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx/qactalrirsin

API key name from On Call Manager.

ocm_api_key_pass

Yes

xxxxxxxxxxxxx+x+xxxxxxxxxxxxxxxx

API key pass from On Call Manager.

ocm_url

Yes

https://oncallmanager.ibm.com/api/

On Call Manager API url.

verify

No

True/False

True, Fa lse, or a path the a certificate file.


Function - On Call Manager: Create Comment

Creates a comment for the incident

screenshot: fn-on-call-manager-create-comment

Inputs:

Name

Type

Required

Example

Tooltip

ocm_comment_author

text

No

-

The user creating the comment

ocm_incident_comment

text

No

-

Comment to add to the incident

ocm_incident_id

text

Yes

xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx

Incident id for the incident to be updated

Outputs:

NOTE: This example might be in JSON format, but results is a Python Dictionary on the SOAR platform.

results = {
  "content": {},
  "inputs": {
    "ocm_comment_author": "me",
    "ocm_incident_comment": "hello",
    "ocm_incident_id": "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx"
  },
  "metrics": {
    "execution_time_ms": 6816,
    "host": "my.app.host",
    "package": "fn-ocm",
    "package_version": "1.0.0",
    "timestamp": "2025-05-23 11:13:18",
    "version": "1.0"
  },
  "raw": null,
  "reason": null,
  "success": true,
  "version": 2.0
}

Example Function Input Script:

inputs.ocm_comment_author = playbook.inputs.ocm_comment_author
inputs.ocm_incident_comment = playbook.inputs.ocm_incident_comment
inputs.ocm_incident_id = playbook.inputs.ocm_incident_id

Example Function Post Process Script:

results = playbook.functions.results.ocm_create_comment_return
if results.get("success", None):
  incident.addNote("On Call Manager: Create Comment was successful.")
else:
  incident.addNote(f"On Call Manager: Create Comment failed with reason:\n{results.get('reason', None)}")


Function - On Call Manager: Create Event

Create an event

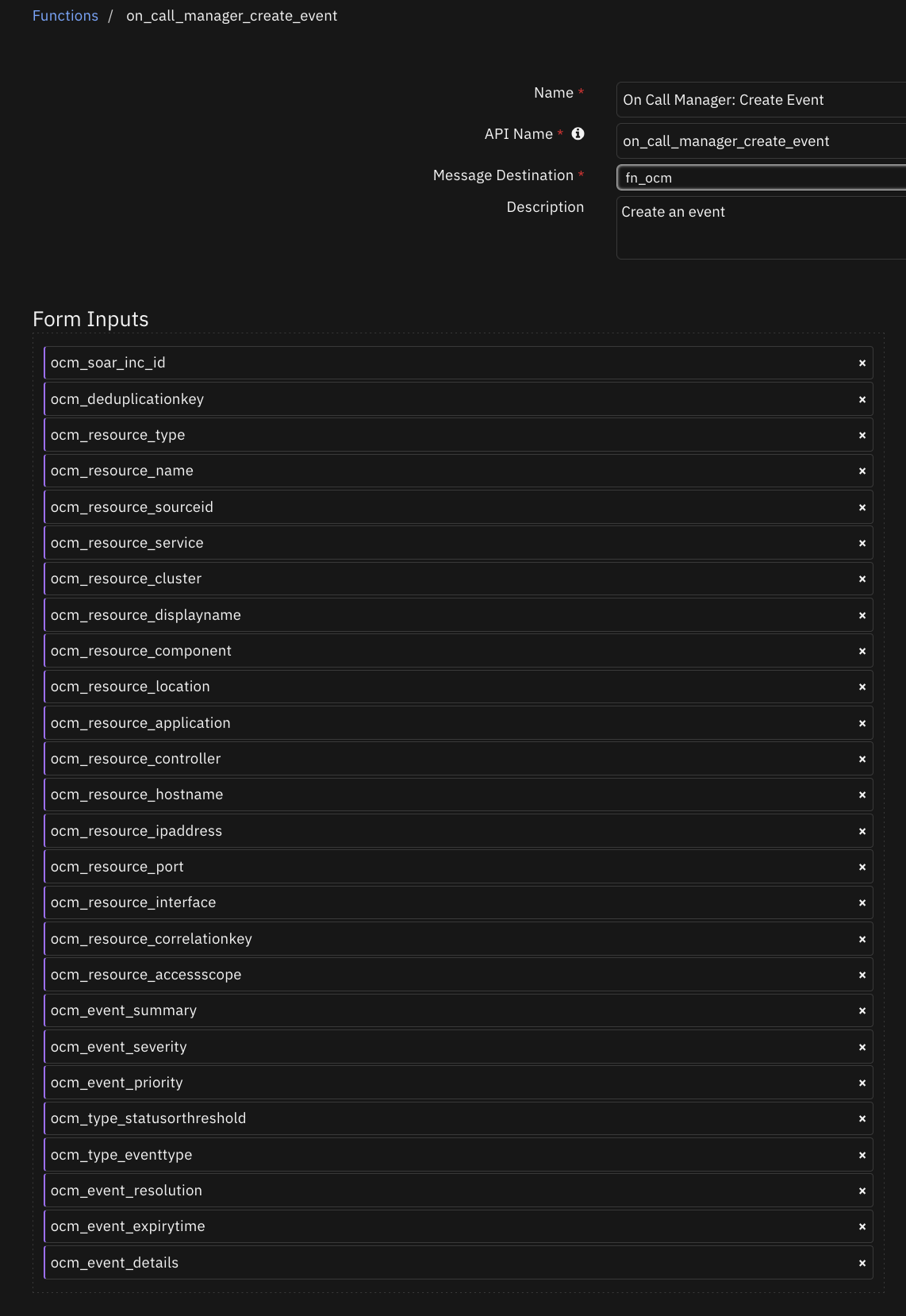

screenshot: fn-on-call-manager-create-event

Inputs:

Name

Type

Required

Example

Tooltip

ocm_deduplicationkey

text

No

-

This is the key used to determine if two instances of an event record presented to the system de-duplicate. If present prevents construction of identifier for de-duplication. If not present the Identifier will be constructed from the resource and type fields.

ocm_event_details

text

No

{"sampleDetails": "value", "example": 4}

A dictionary. Additional properties for the event, key,value value may be string or integer.

ocm_event_expirytime

number

No

3900

The number of seconds after which the event will be cleared, if there have been no further occurrence

ocm_event_priority

select

No

-

Priority

ocm_event_resolution

boolean

No

-

True if this is a resolution event

ocm_event_severity

select

Yes

-

Severity

ocm_event_summary

text

Yes

-

Contains text which describes the event condition

ocm_resource_accessscope

text

No

-

The project or namespace the resource is part of

ocm_resource_application

text

No

-

The application that caused the event

ocm_resource_cluster

text

No

-

The cluster that caused the event

ocm_resource_component

text

No

-

The component that caused the event

ocm_resource_controller

text

No

-

The controller that caused the event

ocm_resource_correlationkey

text

No

-

This is the key used to determine if event records presented to the system should be correlated to the same incident. If present, it prevents construction of a corelation key, if not present the corelation will be constructed from the resource.

ocm_resource_displayname

text

No

-

The display name for the resource

ocm_resource_hostname

text

No

-

The fully qualified hostname

ocm_resource_interface

text

No

-

The interface reporting the issue

ocm_resource_ipaddress

text

No

-

The IP address of the device

ocm_resource_location

text

No

-

Where the event is being reported from

ocm_resource_name

text

Yes

-

The name of the resource causing the event. Identifies the primary resource that the event is affecting

ocm_resource_port

text

No

-

The port reporting the issue

ocm_resource_service

text

No

-

The service that caused the event

ocm_resource_sourceid

text

No

-

The id the resource is known by in the source system

ocm_resource_type

select

No

-

The type of the resource causing the event. Should be used to identify the primary resource that the event is affecting. The value of the type field can be one of the defined key types for resources, eg Application, Server, Service, Cluster. Or it can be a user defined value. If a defined value is used, then the event processing may make use of it during processing.

ocm_soar_inc_id

number

Yes

-

The SOAR incident ID

ocm_type_eventtype

text

No

Response time threshold breached

Description of the type of the event. E.g. Utilization, System status, Threshold breach

ocm_type_statusorthreshold

text

No

> 30 seconds

The status or the threshold causing the event. E.g. Down, 95%, Unavailable

Outputs:

NOTE: This example might be in JSON format, but results is a Python Dictionary on the SOAR platform.

results = {
  "content": {
    "deduplicationKey": "abc",
    "eventid": "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx"
  },
  "inputs": {
    "ocm_event_priority": "3",
    "ocm_event_severity": "Minor",
    "ocm_event_summary": "failure somewhere",
    "ocm_resource_name": "Something failed",
    "ocm_soar_inc_id": 2174,
    "ocm_type_statusorthreshold": "\u003e 1 minute"
  },
  "metrics": {
    "execution_time_ms": 1052,
    "host": "my.app.host",
    "package": "fn-ocm",
    "package_version": "1.0.0",
    "timestamp": "2025-07-08 11:37:32",
    "version": "1.0"
  },
  "raw": null,
  "reason": null,
  "success": true,
  "version": 2.0
}

Example Function Input Script:

inputs.ocm_soar_inc_id = incident.id
inputs.ocm_resource_name = playbook.inputs.ocm_resource_name
inputs.ocm_event_summary = playbook.inputs.ocm_event_summary
inputs.ocm_event_severity = playbook.inputs.ocm_event_severity

if getattr(playbook.inputs, "ocm_event_priority", None):
  inputs.ocm_event_priority = playbook.inputs.ocm_event_priority
if not getattr(playbook.inputs, "ocm_type_statusorthreshold", None) and not getattr(playbook.inputs, "ocm_type_eventtype", None):
  helper.fail("Either ocm_type_statusorthreshold or ocm_type_eventtype must be given.")
if getattr(playbook.inputs, "ocm_type_statusorthreshold", None):
  inputs.ocm_type_statusorthreshold = playbook.inputs.ocm_type_statusorthreshold
if getattr(playbook.inputs, "ocm_type_eventtype", None):
  inputs.ocm_type_eventtype = playbook.inputs.ocm_type_eventtype

# Example input for adding custom properties to the On Call Manager event.
#inputs.ocm_event_details = {"subject":"Example subject", "reason":"something happened", "country":"US", "region":"NA"}

Example Function Post Process Script:

from json import dumps
results = playbook.functions.results.ocm_create_event_return
if results.get("success", None):
  incident.addNote(f"On Call Manager: Create Event was successful and returned:\n{dumps(results.get('content', {}), indent=4)}")
else:
  incident.addNote(f"On Call Manager: Create Event failed with reason:\n{results.get('reason', None)}")


Function - On Call Manager: Get Event

Get the details of an event

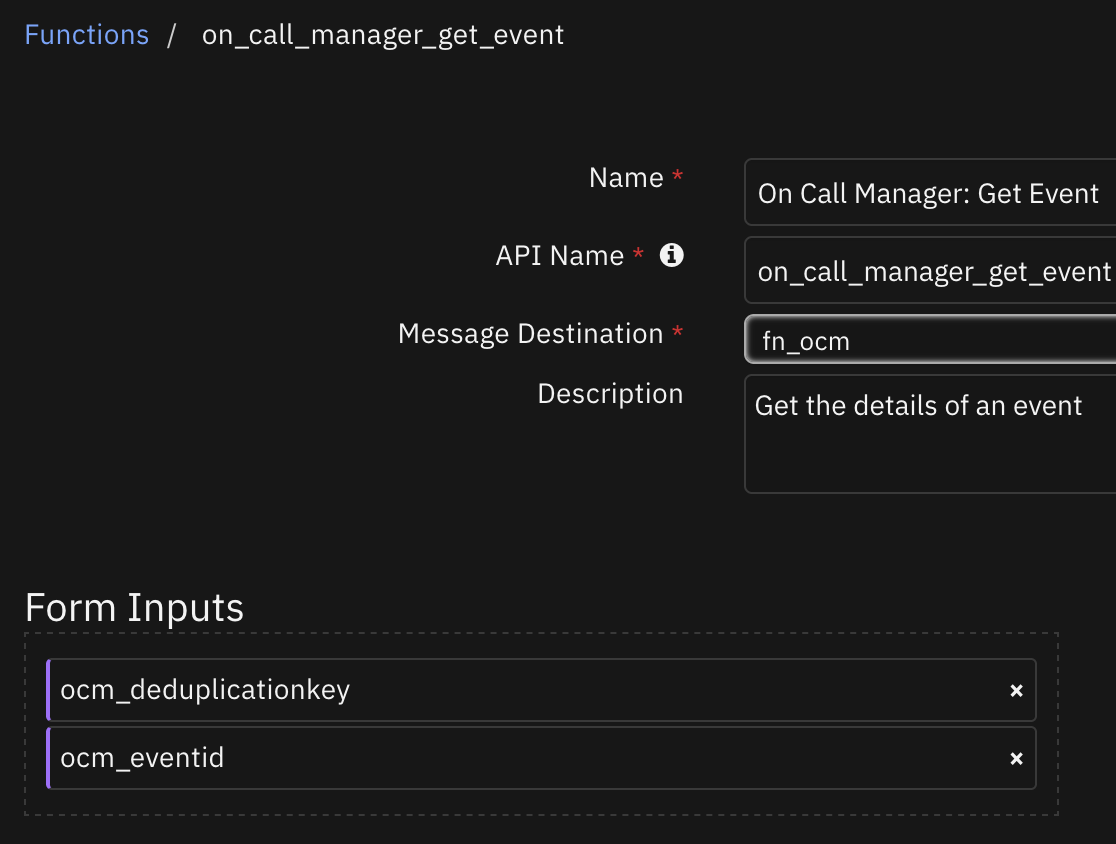

screenshot: fn-on-call-manager-get-event

Inputs:

Name

Type

Required

Example

Tooltip

ocm_deduplicationkey

text

No

-

This is the key used to determine if two instances of an event record presented to the system de-duplicate. If present prevents construction of identifier for de-duplication. If not present the Identifier will be constructed from the resource and type fields.

ocm_eventid

text

Yes

-

ID of the event.

Outputs:

NOTE: This example might be in JSON format, but results is a Python Dictionary on the SOAR platform.

results = {
  "content": {
    "accessScopes": [],
    "deduplicationKey": "abc",
    "eventSource": "Event API",
    "eventState": "open",
    "eventid": "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
    "firstOccurrence": "2025-07-08T15:37:31.545Z",
    "incidentUuid": "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
    "instanceUuid": "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
    "lastOccurrence": "2025-07-08T15:37:31.545Z",
    "maxSeverity10Seen": 40,
    "postTime": "2025-07-08T15:37:31.570Z",
    "resource": {
      "name": "Something failed",
      "type": "Unknown"
    },
    "severity": 3,
    "severity10": 40,
    "summary": "failure somewhere",
    "suppressed": false,
    "type": {
      "statusOrThreshold": "\u003e 1 minute"
    },
    "urls": [
      {
        "description": "Link to the SOAR incident.",
        "url": "https://example.com"
      }
    ],
    "xInYSuppressed": false
  },
  "inputs": {
    "ocm_deduplicationkey": "***",
    "ocm_eventid": "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx"
  },
  "metrics": {
    "execution_time_ms": 480,
    "host": "my.app.host",
    "package": "fn-ocm",
    "package_version": "1.0.0",
    "timestamp": "2025-07-08 11:37:36",
    "version": "1.0"
  },
  "raw": null,
  "reason": null,
  "success": true,
  "version": 2.0
}

Example Function Input Script:

# Both eventid and deduplicationKey are required inputs
results = playbook.functions.results.ocm_create_event_return
content = results.get("content", {})
if content:
  inputs.ocm_deduplicationkey = content.get("deduplicationKey", None)
  inputs.ocm_eventid = content.get("eventid", None)

Example Function Post Process Script:

results = playbook.functions.results.ocm_get_event_results
if not results.get("success", None):
  incident.addNote(f"On Call Manager: Get Event failed with reason:\n{results.get('reason', None)}")

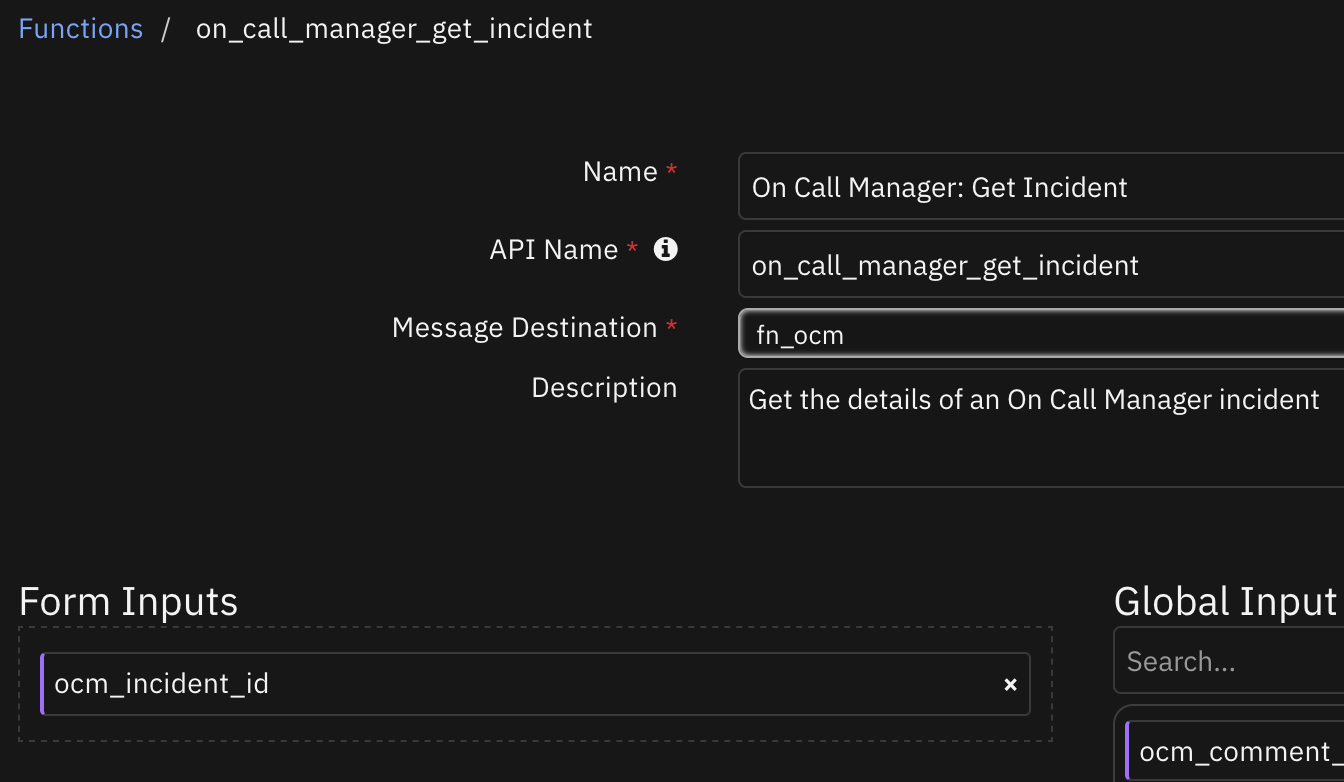

Function - On Call Manager: Get Incident

Get the details of an On Call Manager incident

screenshot: fn-on-call-manager-get-incident

Inputs:

Name

Type

Required

Example

Tooltip

ocm_incident_id

text

Yes

xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx

Incident id for the incident to be updated

Outputs:

NOTE: This example might be in JSON format, but results is a Python Dictionary on the SOAR platform.

results = {
  "content": {
    "accessScopes": [],
    "closedOwner": "-",
    "closedTeam": "-",
    "correlationDetails": {
      "name": "Something failed"
    },
    "createdTime": "2025-07-08T15:37:31.545Z",
    "description": "Name: Something failed",
    "displayId": "0000-34m1",
    "escalated": false,
    "eventSummary": {
      "events": 1,
      "maxSeverities10Seen": [
        {
          "count": 1,
          "severity": 40
        }
      ],
      "openSeverities10": [
        {
          "count": 1,
          "severity": 40
        }
      ],
      "severities": [
        {
          "count": 1,
          "severity": 3
        }
      ],
      "severities10": [
        {
          "count": 1,
          "severity": 40
        }
      ]
    },
    "firstInProgressTime": "-",
    "id": "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
    "lastChanged": "2025-07-08T15:37:33.436Z",
    "owner": "-",
    "priority": 2,
    "resolvedTime": "-",
    "state": "unassigned",
    "summary": "Name: Something failed",
    "team": "-",
    "wasEscalated": false
  },
  "inputs": {
    "ocm_incident_id": "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx"
  },
  "metrics": {
    "execution_time_ms": 571,
    "host": "my.app.host",
    "package": "fn-ocm",
    "package_version": "1.0.0",
    "timestamp": "2025-07-08 11:37:38",
    "version": "1.0"
  },
  "raw": null,
  "reason": null,
  "success": true,
  "version": 2.0
}

Example Function Input Script:

inputs.ocm_incident_id = playbook.inputs.ocm_incident_id

Example Function Post Process Script:

from datetime import datetime
results = playbook.functions.results.ocm_get_incident_results
if results.get("success", None):
  incident.properties.ocm_tab_visible = True
  inc = results.get("content", {})
  if incident.properties.ocm_incident_id:
    # If incident property ocm incident id has a value then add the incident data to the data table
    row = incident.addRow("on_call_manager_incidents")
    row['ocm_query_time'] = int(datetime.now().timestamp()*1000)
    row['ocm_incident_state'] = inc.get("state", None)
    row["ocm_incident_summary"] = inc.get("summary", None)
    row['ocm_incident_description'] = inc.get("description", None)
    row['ocm_incident_owner'] = inc.get("owner", None)
    row['ocm_incident_team'] = inc.get("team", None)
    row['ocm_incident_id'] = inc.get("id", "").strip()
    row['ocm_incident_display_id'] = inc.get("displayId", None)
    row['ocm_incident_last_changed'] = int(datetime.strptime(inc.get("lastChanged", None)[:-1], "%Y-%m-%dT%H:%M:%S.%f").timestamp()*1000) if inc.get("lastChanged", None) else None
    row['ocm_incident_priority'] = inc.get("priority", None)
  else: # else add the incident data to the incident properties
    incident.name = inc.get("summary", None)
    incident.description = inc.get("description", None)
    incident.properties.ocm_incident_assigned_owner = inc.get("owner", None)
    incident.properties.ocm_incident_assigned_team = inc.get("team", None)
    incident.properties.ocm_incident_description = inc.get("description", None)
    incident.properties.ocm_incident_display_id = inc.get("displayId", None)
    incident.properties.ocm_incident_id = inc.get("id", None)
    incident.properties.ocm_incident_priority = inc.get("priority", None)
    incident.properties.ocm_incident_state = inc.get("state", None)
    incident.properties.ocm_incident_summary = inc.get("summary", None)
    incident.properties.ocm_incident_last_changed_time = int(datetime.strptime(inc.get("lastChanged", None)[:-1], "%Y-%m-%dT%H:%M:%S.%f").timestamp()*1000) if inc.get("lastChanged", None) else None
else:
  incident.addNote(f"On Call Manager: Get Incident failed with reason:\n{results.get('reason', None)}")


Function - On Call Manager: List Incidents

List incidents in a team, owner, or default queue. Specify only owner to get a personal queue. Specify only team for a team queue. Omit owner and team to fetch incidents that are on the default queue.

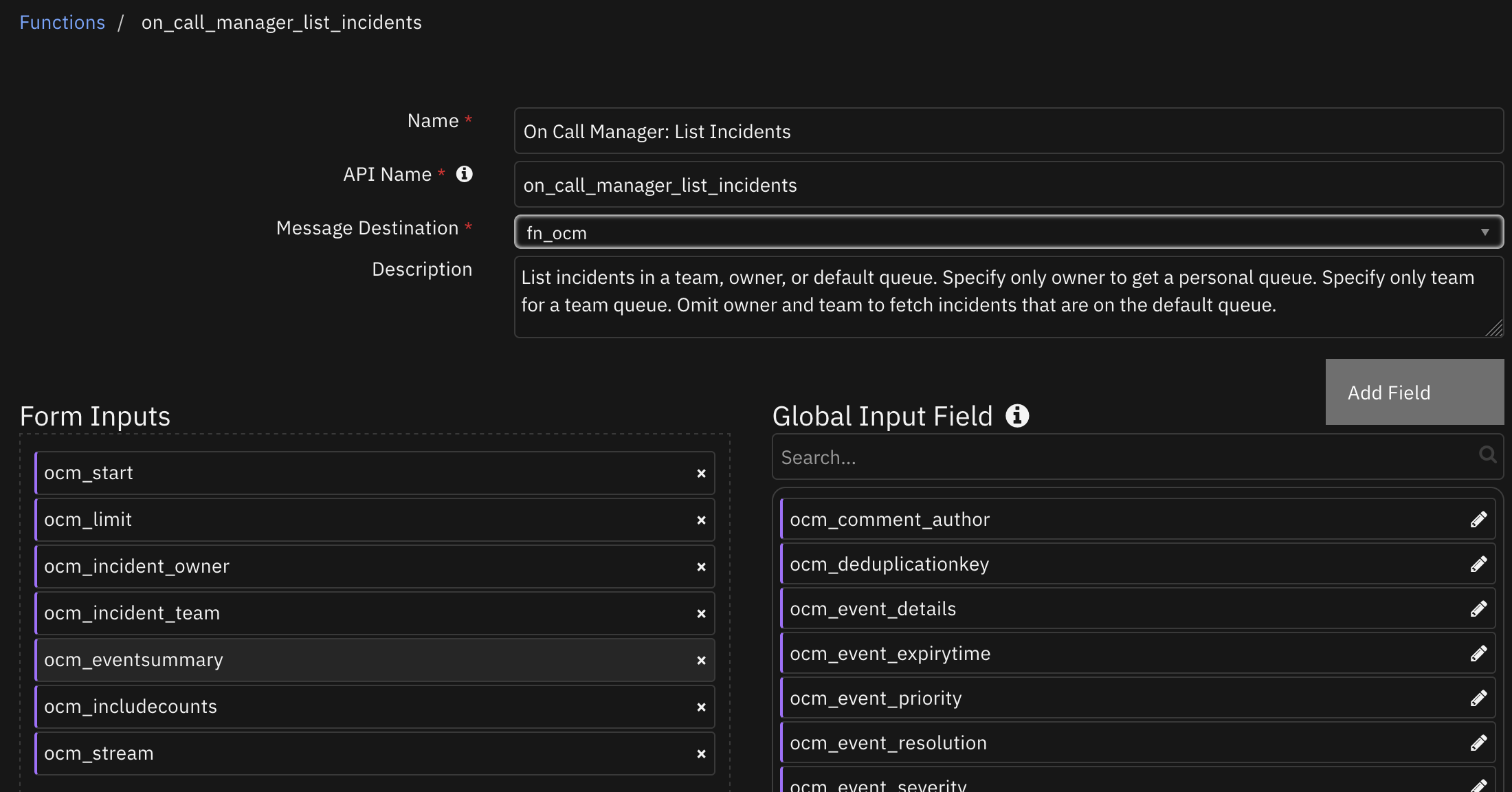

screenshot: fn-on-call-manager-list-incidents

Inputs:

Name

Type

Required

Example

Tooltip

ocm_eventsummary

boolean

No

-

Include the event summary for each matching incident.

ocm_incident_owner

text

No

-

Fetch only incidents on the queue associated with this owner. This parameter takes precedence over group. If no owner or group is specified, then incidents are retrieved from the default queue. Use a single dash(-) to clear the owner value.

ocm_incident_team

text

No

-

Fetch only incidents on the queue associated with this Group. Ignored if owner is specified. If no owner or group is specified, then incidents are retrieved from the default queue. Use a single dash(-) to clear the group value.

ocm_includecounts

boolean

No

-

Include the event type and resource property counts for each matching incident.

ocm_limit

number

No

9999

Limit the returned matching incidents to the first N incidents starting with _start index. Default value : 9999

ocm_start

number

No

1

Return the matching incidents starting from the specified 1 based index. Default 1

ocm_stream

boolean

No

-

Stream the results

Outputs:

NOTE: This example might be in JSON format, but results is a Python Dictionary on the SOAR platform.

results = {
  "content": [
    {
      "accessScopes": [],
      "closedOwner": "-",
      "closedTeam": "-",
      "correlationDetails": {
        "cluster": "SAMPLE - Pipeline Project"
      },
      "createdTime": "2025-05-23T14:29:03.698Z",
      "description": "Cluster: SAMPLE - Pipeline Project",
      "displayId": "0000-20m1",
      "escalated": false,
      "firstInProgressTime": "-",
      "id": "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
      "lastChanged": "2025-05-23T14:29:10.258Z",
      "owner": "-",
      "priority": 2,
      "resolvedTime": "-",
      "state": "unassigned",
      "summary": "Cluster: SAMPLE - Pipeline Project",
      "team": "-",
      "wasEscalated": false
    },
    {
      "accessScopes": [],
      "closedOwner": "-",
      "closedTeam": "-",
      "correlationDetails": {
        "application": "SAMPLE - Online Sales"
      },
      "createdTime": "2025-05-23T14:29:00.871Z",
      "description": "Application: SAMPLE - Online Sales",
      "displayId": "0000-19m1",
      "escalated": false,
      "firstInProgressTime": "-",
      "id": "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
      "lastChanged": "2025-05-23T14:29:14.512Z",
      "owner": "-",
      "priority": 2,
      "resolvedTime": "-",
      "state": "unassigned",
      "summary": "Application: SAMPLE - Online Sales",
      "team": "-",
      "wasEscalated": false
    }
  ],
  "inputs": {},
  "metrics": {
    "execution_time_ms": 3845,
    "host": "my.app.host",
    "package": "fn-ocm",
    "package_version": "1.0.0",
    "timestamp": "2025-05-23 10:45:17",
    "version": "1.0"
  },
  "raw": null,
  "reason": null,
  "success": true,
  "version": 2.0
}

Example Function Input Script:

if getattr(playbook.inputs, "ocm_start", None):
  inputs.ocm_start = getattr(playbook.inputs, "ocm_start", None)
if getattr(playbook.inputs, "ocm_limit", None):
  inputs.ocm_limit = getattr(playbook.inputs, "ocm_limit", None)
if getattr(playbook.inputs, "ocm_incident_owner", None):
  inputs.ocm_incident_owner = getattr(playbook.inputs, "ocm_incident_owner", None)
if getattr(playbook.inputs, "ocm_incident_team", None):
  inputs.ocm_incident_team = getattr(playbook.inputs, "ocm_incident_team", None)

Example Function Post Process Script:

from datetime import datetime
results = playbook.functions.results.ocm_list_incidents_return
if results.get("success", None):
  content = results.get("content", [])
  if content:
    incident.properties.ocm_tab_visible = True
    for inc in content:
      row = incident.addRow("on_call_manager_incidents")
      row['ocm_query_time'] = int(datetime.now().timestamp()*1000)
      row['ocm_incident_state'] = inc.get("state", None)
      row["ocm_incident_summary"] = inc.get("summary", None)
      row['ocm_incident_description'] = inc.get("description", None)
      row['ocm_incident_owner'] = inc.get("owner", None)
      row['ocm_incident_team'] = inc.get("team", None)
      row['ocm_incident_id'] = inc.get("id", "").strip()
      row['ocm_incident_display_id'] = inc.get("displayId", None)
      row['ocm_incident_last_changed'] = int(datetime.strptime(inc.get("lastChanged", None)[:-1], "%Y-%m-%dT%H:%M:%S.%f").timestamp()*1000) if inc.get("lastChanged", None) else None
      row['ocm_incident_priority'] = inc.get("priority", None)
else:
  incident.addNote(f"On Call Manager: List Incidents failed with reason:\n{results.get('reason', None)}")


Function - On Call Manager: Query Incidents

Query incidents for a given period of time based on properties of the incident or properties of the events correlated to the incidents. By default, incidents created in the last 7 days will be retrieved and filtered. A start time and end time can be provided to define the time range, but the range is limited to a 30 day period. The query also has a limit of 500 incidents being returned for any query. Incidents can be requested by incident properties, like incident priority and incident state. You can also set 1 or more event filters that set conditions on events that must be correlated to an incident for it to be included in the query results. You can filter only on incident properties, only on properties of the correlated events, or a combination of the two.

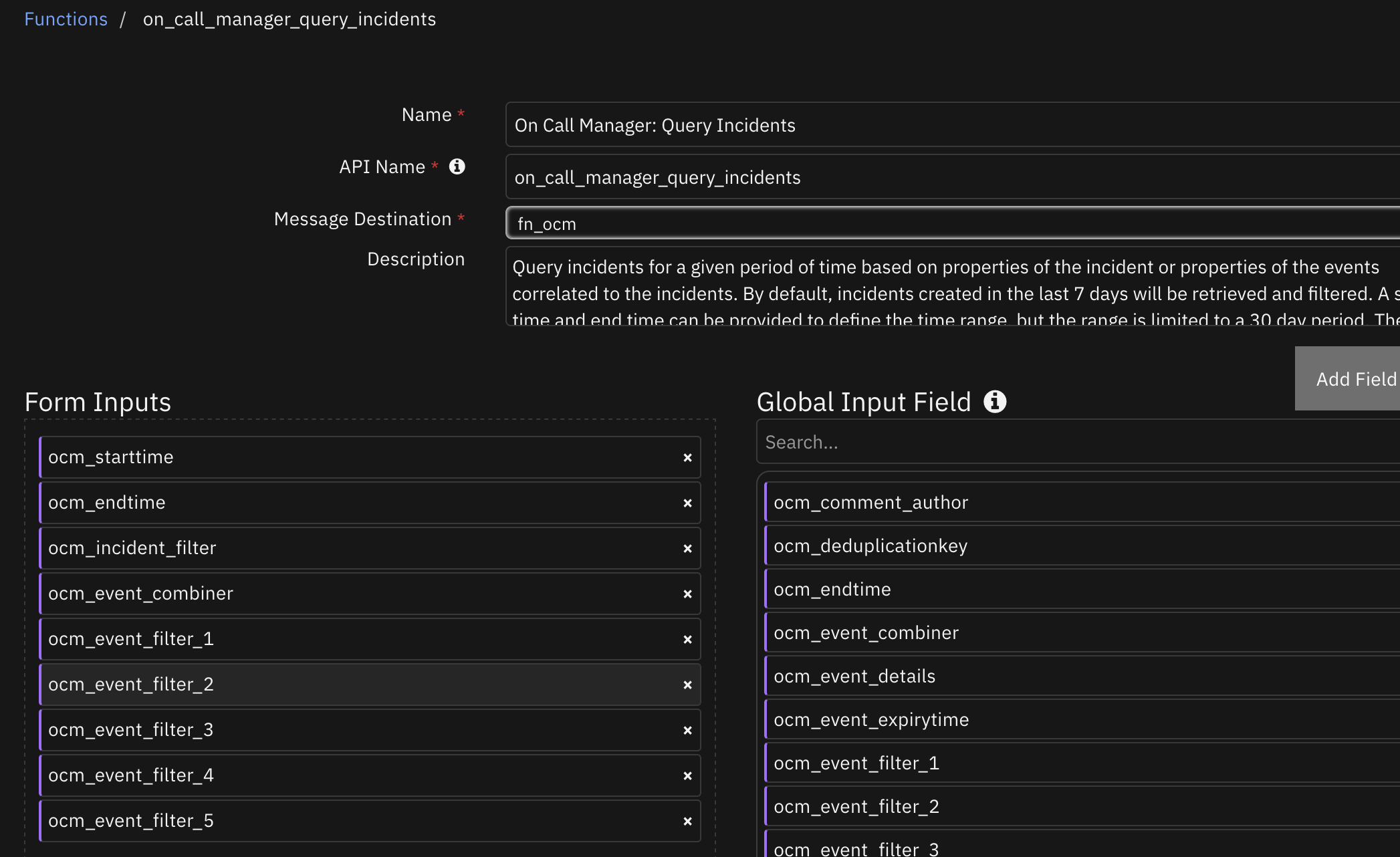

screenshot: fn-on-call-manager-query-incidents

Inputs:

Name

Type

Required

Example

Tooltip

ocm_endtime

datetimepicker

No

-

Ending UTC timestamp (YYYY-MM-DDTHH:mm:SS.sssZ) for range of incidents to query - - will default to current time. This time is compared to the “created” time of an incident to determine if the incident should be included. Example values: 2017-09-14T17:00:00.000Z, 2017-09-14T17:00, 2017-09-14

ocm_event_combiner

select

No

-

Set to “and” or “or” to indicate how the event filters should be combined when filtering by event content. The default is to combine the event filters using the “and” operator, meaning all event filters must be satisfied by any returned incident. Use “or” if only one of the event filters must be satisfied.

ocm_event_filter_1

text

No

severity >= "minor"

A condition filter that specifies expression matches for the properties of a single event on the incident. Examples: severity >= “minor”

ocm_event_filter_2

text

No

summary starts with "Failure" and resource.application == "payroll"

A condition filter that specifies expression matches for the properties of a single event on the incident. Examples: summary starts with “Failure” and resource.application == “payroll”

ocm_event_filter_3

text

No

type.eventType == 'a1' or type.eventType == 'a2' or type.eventType == 'a3'

A condition filter that specifies expression matches for the properties of a single event on the incident. Examples: type.eventType == ‘a1’ or type.eventType == ‘a2’ or type.eventType == ‘a3’

ocm_event_filter_4

text

No

summary starts with "Failure"

A condition filter that specifies expression matches for the properties of a single event on the incident. Examples: summary starts with “Failure”

ocm_event_filter_5

text

No

type.eventType == 'a2'

A condition filter that specifies expression matches for the properties of a single event on the incident. Examples: type.eventType == ‘a2’

ocm_incident_filter

text

No

lastChanged > "2017-08-01"

A condition filter that specifies expression matches for incident properties. Examples: ‘lastChanged > “2017-08-01”’, ‘priority == 5 OR priority == 4’

ocm_starttime

datetimepicker

No

-

Beginning UTC timestamp (YYYY-MM-DDTHH:mm:SS.sssZ) for range of incidents to query - will default to system configured value of 7 days ago. This time is compared to the “created” time of an incident to determine if the incident should be included. Example values: 2017-09-12T08:00:00.000Z, 2017-09-12T08:00, 2017-09-12

Outputs:

NOTE: This example might be in JSON format, but results is a Python Dictionary on the SOAR platform.

results = {
  "content": [
    {
      "accessScopes": [],
      "closedOwner": "-",
      "closedTeam": "-",
      "correlationDetails": {
        "application": "SAMPLE - Online Sales"
      },
      "createdTime": "2025-07-08T15:00:37.538Z",
      "description": "Application: SAMPLE - Online Sales",
      "displayId": "0000-32m1",
      "escalated": false,
      "eventsURL": "https://oncallmanager.ibm.com/api/incidentquery/v1/xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx/events",
      "firstInProgressTime": "-",
      "id": "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
      "incidentURL": "https://oncallmanager.ibm.com/api/incidentquery/v1/xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
      "lastChanged": "2025-07-08T15:00:49.937Z",
      "owner": "-",
      "priority": 2,
      "resolvedTime": "-",
      "state": "unassigned",
      "summary": "Application: SAMPLE - Online Sales",
      "team": "-",
      "timelineURL": "https://oncallmanager.ibm.com/api/incidentquery/v1/xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx/timeline",
      "wasEscalated": false
    },
    {
      "accessScopes": [],
      "closedOwner": "-",
      "closedTeam": "-",
      "correlationDetails": {
        "application": "SAMPLE - Online Banking"
      },
      "createdTime": "2025-07-08T15:00:30.658Z",
      "description": "Application: SAMPLE - Online Banking",
      "displayId": "0000-31m1",
      "escalated": false,
      "eventsURL": "https://oncallmanager.ibm.com/api/incidentquery/v1/xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx/events",
      "firstInProgressTime": "-",
      "id": "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
      "incidentURL": "https://oncallmanager.ibm.com/api/incidentquery/v1/xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
      "lastChanged": "2025-07-08T15:00:54.943Z",
      "owner": "-",
      "priority": 2,
      "resolvedTime": "-",
      "state": "unassigned",
      "summary": "Application: SAMPLE - Online Banking",
      "team": "-",
      "timelineURL": "https://oncallmanager.ibm.com/api/incidentquery/v1/xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx/timeline",
      "wasEscalated": false
    }
  ],
  "inputs": {
    "ocm_endtime": 1752033600000,
    "ocm_event_combiner": "and",
    "ocm_event_filter_1": "severity \u003e= \"minor\"",
    "ocm_starttime": 1751860800000
  },
  "metrics": {
    "execution_time_ms": 592,
    "host": "my.app.host",
    "package": "fn-ocm",
    "package_version": "1.0.0",
    "timestamp": "2025-07-08 11:11:46",
    "version": "1.0"
  },
  "raw": null,
  "reason": null,
  "success": true,
  "version": 2.0
}

Example Function Input Script:

if getattr(playbook.inputs, "ocm_endtime", None):
  inputs.ocm_endtime = getattr(playbook.inputs, "ocm_endtime", None)
if getattr(playbook.inputs, "ocm_event_combiner", None):
  inputs.ocm_event_combiner = getattr(playbook.inputs, "ocm_event_combiner", None)
if getattr(playbook.inputs, "ocm_event_filter_1", None):
  inputs.ocm_event_filter_1 = getattr(playbook.inputs, "ocm_event_filter_1", None)
if getattr(playbook.inputs, "ocm_event_filter_2", None):
  inputs.ocm_event_filter_2 = getattr(playbook.inputs, "ocm_event_filter_2", None)
if getattr(playbook.inputs, "ocm_event_filter_3", None):
  inputs.ocm_event_filter_3 = getattr(playbook.inputs, "ocm_event_filter_3", None)
if getattr(playbook.inputs, "ocm_event_filter_4", None):
  inputs.ocm_event_filter_4 = getattr(playbook.inputs, "ocm_event_filter_4", None)
if getattr(playbook.inputs, "ocm_event_filter_5", None):
  inputs.ocm_event_filter_5 = getattr(playbook.inputs, "ocm_event_filter_5", None)
if getattr(playbook.inputs, "ocm_incident_filter", None):
  inputs.ocm_incident_filter = getattr(playbook.inputs, "ocm_incident_filter", None)
if getattr(playbook.inputs, "ocm_starttime", None):
  inputs.ocm_starttime = getattr(playbook.inputs, "ocm_starttime", None)

Example Function Post Process Script:

from datetime import datetime
results = playbook.functions.results.ocm_query_incidents_results
if results.get("success", None):
  content = results.get("content", [])
  if content:
    incident.properties.ocm_tab_visible = True
    for inc in content:
      row = incident.addRow("on_call_manager_incidents")
      row['ocm_query_time'] = int(datetime.now().timestamp()*1000)
      row['ocm_incident_state'] = inc.get("state", None)
      row["ocm_incident_summary"] = inc.get("summary", None)
      row['ocm_incident_description'] = inc.get("description", None)
      row['ocm_incident_owner'] = inc.get("owner", None)
      row['ocm_incident_team'] = inc.get("team", None)
      row['ocm_incident_id'] = inc.get("id", None)
      row['ocm_incident_display_id'] = inc.get("displayId", None)
      row['ocm_incident_last_changed'] = int(datetime.strptime(inc.get("lastChanged", None)[:-1], "%Y-%m-%dT%H:%M:%S.%f").timestamp()*1000) if inc.get("lastChanged", None) else None
      row['ocm_incident_priority'] = inc.get("priority", None)
else:
  incident.addNote(f"On Call Manager: Query Incidents failed with reason:\n{results.get('reason', None)}")


Function - On Call Manager: Update Incident

Updates the header properties of an incident, like state, owner, and team. Set the owner to move the incident to a personal queue associated with the owner. Set the team, but not the owner, to put the incident on the team queue. Incidents with no team or owner set are on the default queue. Set the owner and/or team to a single dash(-) to clear the values and move the incident back to the default queue.

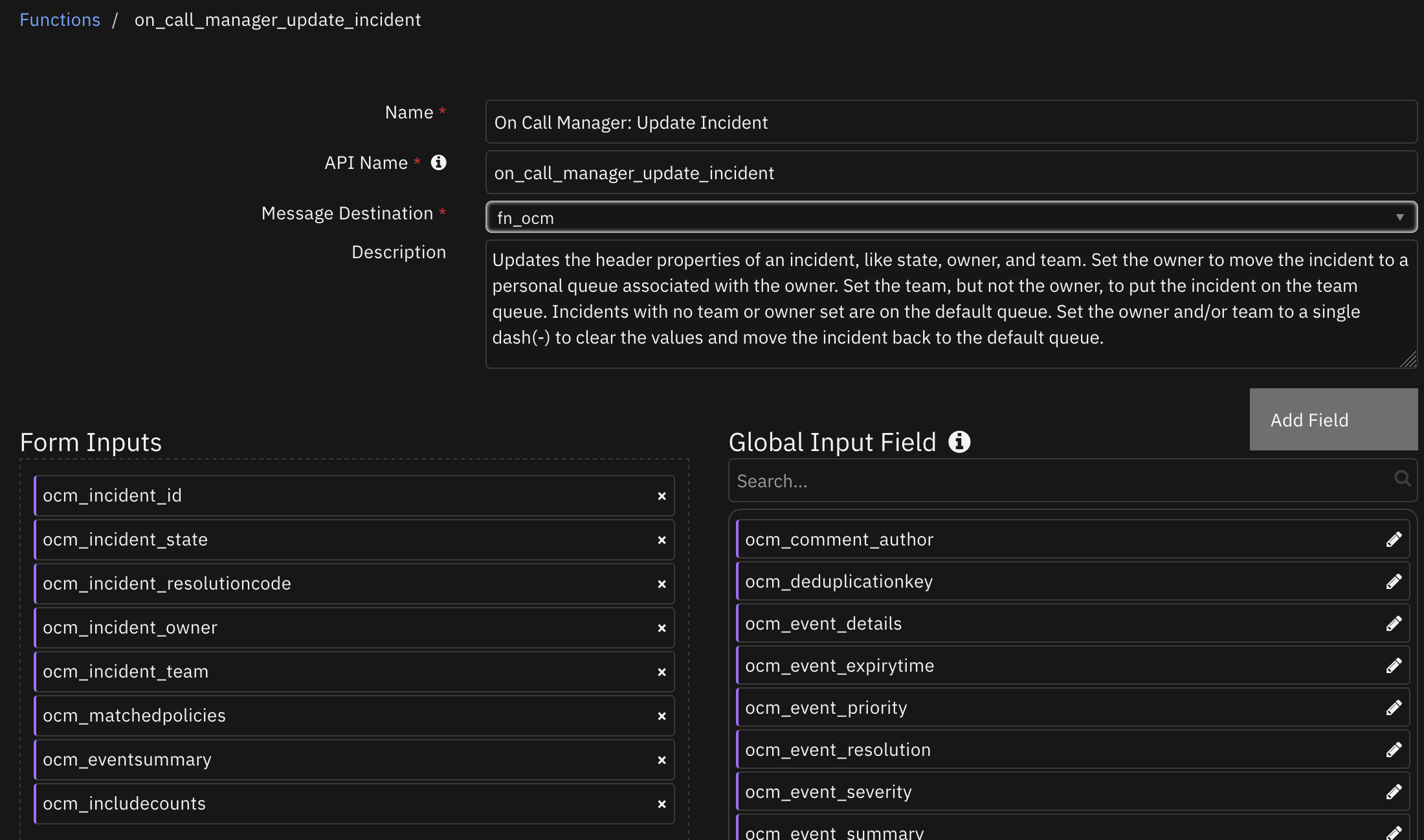

screenshot: fn-on-call-manager-update-incident

Inputs:

Name

Type

Required

Example

Tooltip

ocm_eventsummary

boolean

No

-

Include the event summary for each matching incident.

ocm_incident_id

text

Yes

xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx

Incident id for the incident to be updated

ocm_incident_owner

text

No

-

Owner to be assigned to the incident. If Owner Given then Group must also be given.

ocm_incident_resolutioncode

select

No

-

Reason for incident being moved to the resolved state. Only allowed when state is also specified with a value of resolved or closed.

ocm_incident_state

select

No

-

State to be set for the incident.

ocm_incident_team

text

No

-

Group to be set as responsible for the incident.

ocm_includecounts

boolean

No

-

Include the event type and resource property counts for each matching incident.

ocm_matchedpolicies

text

No

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx, xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

Comma separated list of policy ids that have been matched to the incident.

Outputs:

NOTE: This example might be in JSON format, but results is a Python Dictionary on the SOAR platform.

results = {
  "content": {
    "accessScopes": [],
    "assignedBy": "MANUAL",
    "closedOwner": "-",
    "closedTeam": "-",
    "correlationDetails": {
      "cluster": "SAMPLE - Pipeline Project"
    },
    "createdTime": "2025-05-23T14:29:03.698Z",
    "description": "Cluster: SAMPLE - Pipeline Project",
    "displayId": "0000-20m1",
    "escalated": false,
    "eventTypeCounts": [
      {
        "count": 3,
        "eventType": "Build Status"
      }
    ],
    "firstInProgressTime": "-",
    "id": "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
    "lastChanged": "2025-05-23T15:27:13.602Z",
    "owner": "-",
    "priority": 2,
    "resolvedTime": "-",
    "resourcePropertyCounts": [
      {
        "count": 3,
        "propertyName": "cluster",
        "propertyValue": "SAMPLE - Pipeline Project"
      },
      {
        "count": 3,
        "propertyName": "hostname",
        "propertyValue": "buildbox"
      },
      {
        "count": 3,
        "propertyName": "name",
        "propertyValue": "SAMPLE - Pipeline Project"
      },
      {
        "count": 3,
        "propertyName": "type",
        "propertyValue": "Pipeline"
      }
    ],
    "state": "assignedToTeam",
    "summary": "Cluster: SAMPLE - Pipeline Project",
    "team": "test_1",
    "wasEscalated": false
  },
  "inputs": {
    "ocm_eventsummary": true,
    "ocm_incident_id": "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
    "ocm_incident_state": "assignedToTeam",
    "ocm_incident_team": "test_1",
    "ocm_includecounts": true
  },
  "metrics": {
    "execution_time_ms": 4373,
    "host": "my.app.host",
    "package": "fn-ocm",
    "package_version": "1.0.0",
    "timestamp": "2025-05-23 11:27:17",
    "version": "1.0"
  },
  "raw": null,
  "reason": null,
  "success": true,
  "version": 2.0
}

Example Function Input Script:

inputs.ocm_incident_id = incident.properties.ocm_incident_id
if getattr(playbook.inputs, "ocm_incident_state", None):
  inputs.ocm_incident_state = getattr(playbook.inputs, "ocm_incident_state", None)
else:
  inputs.ocm_incident_state = incident.properties.ocm_incident_state
if getattr(playbook.inputs, "ocm_incident_owner", None):
  inputs.ocm_incident_owner = getattr(playbook.inputs, "ocm_incident_owner", None)
if getattr(playbook.inputs, "ocm_incident_team", None):
  inputs.ocm_incident_team = getattr(playbook.inputs, "ocm_incident_team", None)
if getattr(playbook.inputs, "ocm_incident_resolutioncode", None):
  inputs.ocm_incident_resolutioncode = getattr(playbook.inputs, "ocm_incident_resolutioncode", None)

Example Function Post Process Script:

from datetime import datetime
results = playbook.functions.results.ocm_update_incident_output
if results.get("success", None):
  incident.addNote(f"On Call Manager: Update Incident successfully updated the incident with ID: {incident.properties.ocm_incident_id}")
  inc = results.get("content", {})
  incident.properties.ocm_incident_assigned_owner = inc.get("owner", None)
  incident.properties.ocm_incident_assigned_team = inc.get("team", None)
  incident.properties.ocm_incident_description = inc.get("description", None)
  incident.properties.ocm_incident_display_id = inc.get("displayId", None)
  incident.properties.ocm_incident_id = inc.get("id", None)
  incident.properties.ocm_incident_priority = inc.get("priority", None)
  incident.properties.ocm_incident_state = inc.get("state", None)
  incident.properties.ocm_incident_summary = inc.get("summary", None)
  incident.properties.ocm_incident_last_changed_time = int(datetime.strptime(inc.get("lastChanged", None)[:-1], "%Y-%m-%dT%H:%M:%S.%f").timestamp()*1000) if inc.get("lastChanged", None) else None

else:
  incident.addNote(f"On Call Manager: Update Incident failed with reason:\n{results.get('reason', None)}")


Playbooks

Playbook Name

Description

Activation Type

Object

Status

Condition

On Call Manager: Create Comment - Example (PB)

Add a comment to an incident in On Call Manager

Manual

incident

enabled

-

On Call Manager: Create Event - Example (PB)

Creates an event in On Call Manager

Manual

incident

enabled

incident.properties.ocm_incident_id not_has_a_value

On Call Manager: Get Incident - Example (PB)

Get the details of an On Call Manager Incident. If the SOAR incident property OCM Incident ID has a value, then the incident data will be added to the OCM Incidents data table. If the SOAR incident property OCM Incident ID does not have a value, then the data will be added to the OCM SOAR incident properties.

Manual

incident

enabled

-

On Call Manager: List Incidents - Example (PB)

List incidents in a team, owner, or default queue. Specify only owner to get a personal queue. Specify only team for a team queue. Omit owner and team to fetch incidents that are on the default queue.

Manual

incident

enabled

-

On Call Manager: Query Incidents - Example (PB)

Query incidents for a given period of time based on properties of the incident or properties of the events correlated to the incidents. By default, incidents created in the last 7 days will be retrieved and filtered. A start time and end time can be provided to define the time range, but the range is limited to a 30 day period. The query also has a limit of 500 incidents being returned for any query. Incidents can be requested by incident properties, like incident priority and incident state. You can also set 1 or more event filters that set conditions on events that must be correlated to an incident for it to be included in the query results. You can filter only on incident properties, only on properties of the correlated events, or a combination of the two.

Manual

incident

enabled

-

On Call Manager: Sync Incident - Example (PB)

Update the OCM SOAR incident properties with the latest data from the OCM incident.

Manual

incident

enabled

incident.properties.ocm_incident_id has_a_value

On Call Manager: Sync Incident (datatable) - Example (PB)

Sync the OCM incident data

Manual

on_call_manager_incidents

enabled

incident.properties.ocm_incident_id has_a_value

On Call Manager: Update Incident - Example (PB)

Updates the header properties of an incident, like state, owner, and team. Set the owner to move the incident to a personal queue associated with the owner. Set the team, but not the owner, to put the incident on the team queue. Incidents with no team or owner set are on the default queue. Set the owner and/or team to a single dash(-) to clear the values and move the incident back to the default queue.

Manual

incident

enabled

incident.properties.ocm_incident_id has_a_value


Custom Layouts

  • Import the Data Tables and Custom Fields like the screenshot below:

    screenshot: custom_layouts

Data Table - On Call Manager: Incidents

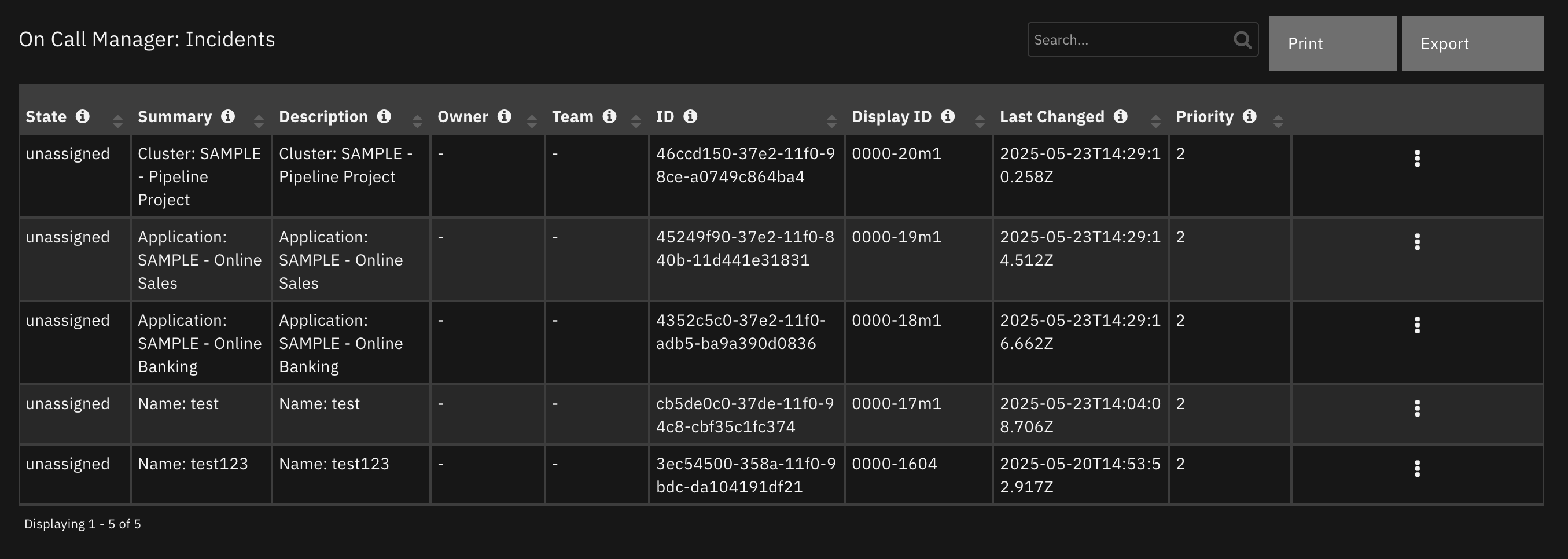

screenshot: dt-on-call-manager-incidents

API Name:

on_call_manager_incidents

Columns:

Column Name

API Access Name

Type

Tooltip

Description

ocm_incident_description

text

Description of the issue that raised the incident.

Display ID

ocm_incident_display_id

text

Display Id for the incident – generated by the server from id.

Group

ocm_incident_team

text

Group that is responsible for the incident.

ID

ocm_incident_id

text

Id for the incident – generated by the server.

Last Changed

ocm_incident_last_changed

datetimepicker

Time at which a change was made to the incident. Changes to the fields in the incident and additional event instances (but not occurrences) are included.

Owner

ocm_incident_owner

text

Assigned owner for the incident.

Priority

ocm_incident_priority

number

The priority assigned to the incident. 1 is the highest

Query time

ocm_query_time

datetimepicker

The time the query was made.

State

ocm_incident_state

select

Current state of the incident.

Summary

ocm_incident_summary

text

Summary of the incident.


Custom Fields

Label

API Access Name

Type

Prefix

Placeholder

Tooltip

OCM Incident Assigned Group

ocm_incident_assigned_team

text

properties

-

Group with responsibility for the incident. A single hyphen (-) indicates no group. If the incident has no group it will appear in the default queue.

OCM Incident Assigned Owner

ocm_incident_assigned_owner

text

properties

-

Individual with responsibility for the incident. A single hyphen (-) indicates no user. If the incident has no owner it will appear in the group queue.

OCM Incident Description

ocm_incident_description

text

properties

-

Description of the issue that raised the incident.

OCM Incident Display ID

ocm_incident_display_id

text

properties

#lxr2-6az6

Display Id for the incident – generated by the server from id.

OCM Incident ID

ocm_incident_id

text

properties

xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx

ID of an On Call Manager incident

OCM Incident Last Changed Time

ocm_incident_last_changed_time

datetimepicker

properties

-

Time at which a change was made to the incident. Changes to the fields in the incident and additional event instances (but not occurrences) are included.

OCM Incident Priority

ocm_incident_priority

number

properties

5

The priority assigned to the incident. 1 is the highest

OCM Incident State

ocm_incident_state

select

properties

-

Incident State

OCM Incident Summary

ocm_incident_summary

text

properties

-

Summary of the incident.

ocm_tab_visible

ocm_tab_visible

boolean

properties

-

This is used to make the OCM SOAR Incident tab visible when Get All Incidents is run.


Troubleshooting & Support

Refer to the documentation listed in the Requirements section for troubleshooting information.

For Support

This is an IBM supported app. Please search ibm.com/mysupport for assistance.
